Exploded View

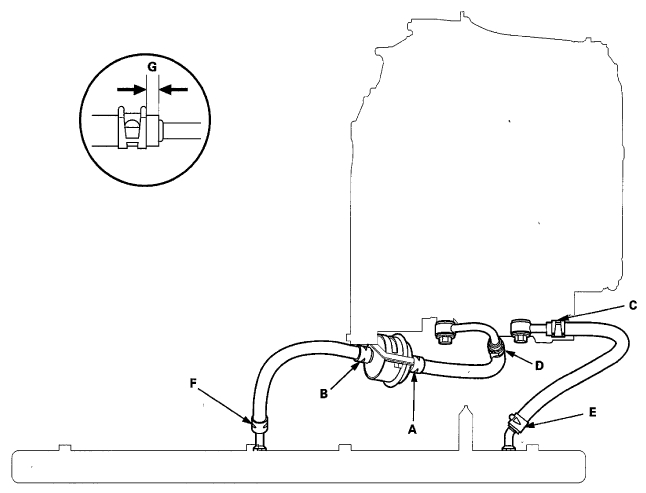

Fig 1: Identifying CVTF Cooler Hoses

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the CVTF cooler hoses over the CVTF cooler lines with the clips at appropriate points in reference to the following list.

CVTF COOLER HOSES CLIPS REFERENCE CHART

Point	Distance from Hose End to Clip (G)	Hose End Contact Point
A	2-4 mm (0.08-0.16 in)	CVTF Filter Housing from 5-7 mm (0.20-0.28 in)
B	2-4 mm (0.08-0.16 in)	CVTF Filter Housing from 5-7 mm (0.20-0.28 in)
C	6-8 mm (0.24-0.31 in)	Pipe Bracket
D	6-8 mm (0.24-0.31 in)	Bulge
E	2-4 mm (0.08-0.16 in)
F	2-4 mm (0.08-0.16 in)

Check the CVT fluid level (see CVT FLUID LEVEL CHECK ). Refill the transmission with CVTF if necessary.
