EPS Control Unit Removal & Installation: Installation

1. EPS Control Unit - Install

Courtesy of HONDA, U.S.A., INC.

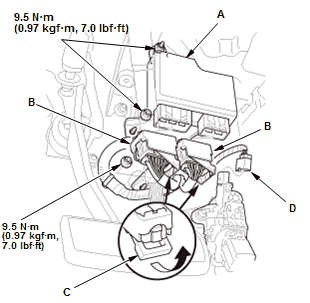

1. Install the EPS control unit (A)

2. Connect the connectors (B), then pulling up the lever (C), and confirm the connector is fully seated

3. Connect the connector (D).
2. Driver's Dashboard Lower Cover - Install
3. Driver's Dashboard Panel - Install
4. Driver's Dashboard Undercover - Install - Refer to: Passenger's Dashboard Undercover Removal and Installation Driver's Dashboard Undercover Removal and Installation
5. 12 Volt Battery Terminal - Reconnect
6. EPS Control Unit After Install - Check
1. After installation, check these items:
- Start the engine, allow it to idle, and turn the steering wheel from lock to lock several times.
- Check that the EPS indicator does not come on.
