Driver's Door Power Tailgate Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the driver's door power tailgate switch (B).

Fig 1: Identifying Driver'S Door Power Tailgate Switch With 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting screws, and then remove the driver's door power tailgate switch.
Check for continuity between the terminals in each switch position according to the table.

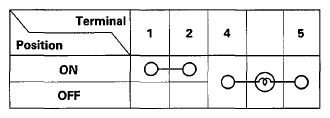

Fig 2: Checking Continuity Between Terminals In Switch Position According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulb (A) or the switch.

Fig 3: Replacing Bulb Or Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
