Exploded View

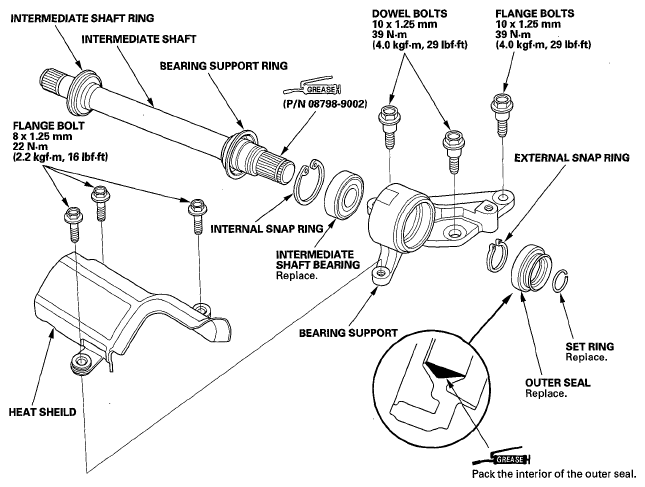

Fig 1: Exploded View Of Intermediate Shaft With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Support Base Attachment 07LAF-SM40300
• Support Base 07965-SD90100
• Oil seal driver attachment, 58 mm 07JAD-PH80101
• Fork seal driver, 39.2 mm 07947-4630100
• Installer attachment, 40 mm 07LAD-PW50601

1. Clean the disassembled parts with solvent or brake cleaner, and dry them with compressed air.
   NOTE: Do not wash the rubber parts with solvent.
2. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 58 mm oil seal driver attachment (C), the 15 x 135L driver handle (D), and a press.
   Fig 2: Pressing Intermediate Shaft Bearing Into Bearing Support

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the internal snap ring (A) in the groove (B) of the bearing support.
   Fig 3: Identifying Internal Snap Ring And Groove

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

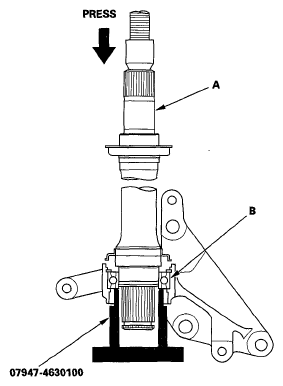

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 39.2 x 49.5 x 15 mm fork seal driver (C), and a press.
   Fig 4: Pressing Intermediate Shaft Into Shaft Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the external snap ring (A) in the groove of the intermediate shaft (B).
   Fig 5: Identifying External Snap Ring And Intermediate Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install a new outer seal (A) into the bearing support (B) using the 40 x 50 mm attachment (C), the support base attachment (D), the support base (E), and a press. Press in the seal flush with the surface of the bearing support.
   Fig 6: Installing Outer Seal Into Bearing Support

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the heat shield onto the bearing support.

Fig 7: Heat Shield With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
