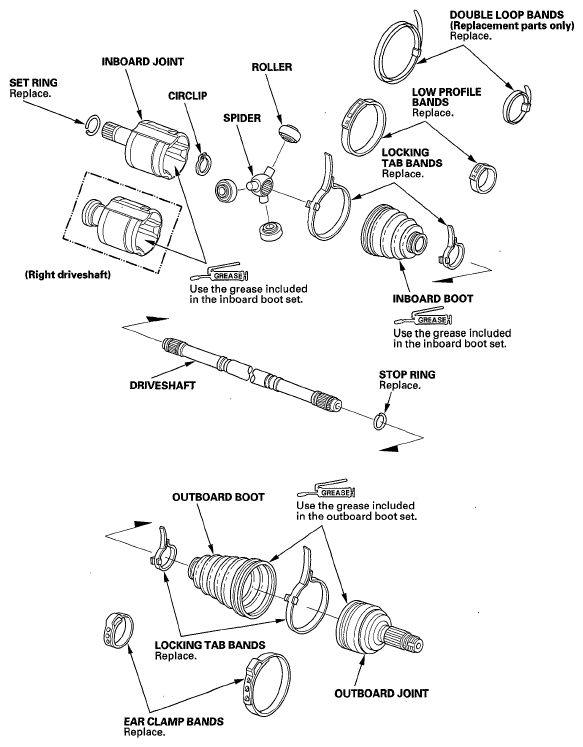

Exploded View
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- Boot Band Tool KD-3191 or equivalent, commercially available
- Boot Band Clamp Tool Kent-Moore J-35910 or equivalent, commercially available
- Boot Band Pliers, commercially available
NOTE:
Refer to the EXPLODED VIEW , as needed, during this procedure.
