Tailgate Lower Handle Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to kink the cable.
  1. Swing the tailgate open.
  2. Remove the tailgate trim panel (see TAILGATE TRIM PANEL REMOVAL/INSTALLATION ).
  3. Remove the tailgate lower handle (A).
    1. -1 Detach the cable clip (B).
    2. -2 Remove the nuts securing the lower handle.
    3. -3 Pull out the handle, and disconnect the lower handle cable (C).

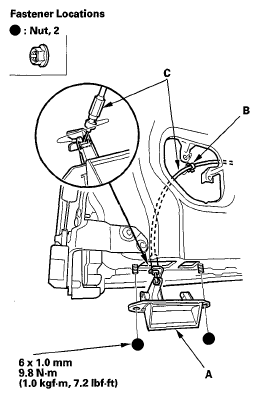

    Fig 1: Tailgate Lower Handle And Cable Clip With Torque Specifications
    G05965845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the lower handle in the reverse order of removal, and note these items:
    • Apply medium strength liquid thread lock to the threaded studs before reinstalling the handle.
    • Make sure the lower handle cable is connected securely.
    • Make sure the tailgate opens in swing mode properly.
