Rear Engine Mount Removal and Installation: Installation

  1. Install the rear engine mount (A) using new bolts (B).

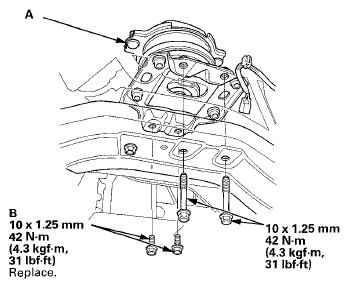

    Fig 1: Rear Engine Mount And Bolts With Torque Specifications
    G08078605Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the jack and the wood block.
  3. Install the new rear engine mount mounting bolt (A), the heat shield (B), and the rear engine mount stop (C) using new nuts.

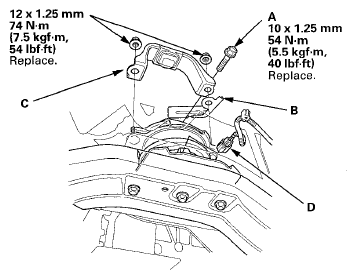

    Fig 2: Rear Engine Mount Mounting Bolt, Heat Shield And Rear Engine Mount Stop With Torque Specifications
    G08078606Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Connect the rear engine mount actuator connector (D).
  5. Install the heat shield.
    Fig 3: Identifying Heat Shield
    G08078607Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the rear warm up TWC (see WARM UP TWC REMOVAL/INSTALLATION ).
