How to Clear Error History

  1. Do the steps in How to check Error History.
  2. Select Clear in the error menu.
    NOTE:
    • By selecting Clear, all software and hardware errors stored in history are erased at the same time.
    • Save is for factory use only.
    • Write down the navigation DTCs and error history before deleting.

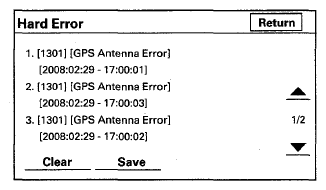

    Hard error history is displayed

    Fig 1: Display Of Hard Error History
    G08091061Courtesy of AMERICAN HONDA MOTOR CO., INC.

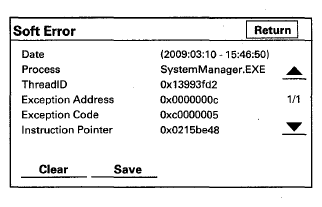

    Soft error history is displayed (software errors are for factory use only)

    Fig 2: Display Of Soft Error
    G08091062Courtesy of AMERICAN HONDA MOTOR CO., INC.

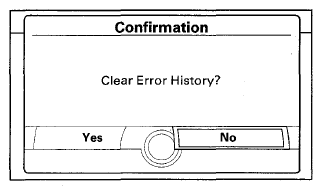

  3. After selecting Clear, then selecting Yes on the confirmation screen, both Hard Error history and Soft Error history are cleared at the same time.

    Hard error history clear/Soft error history clear (Soft errors are for factory use only)

    Fig 3: Display Of Confirmation
    G08091063Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Select Return to exit the error history.
