Mirror Holder Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Carefully push on the top edge of the mirror holder (A) by hand.

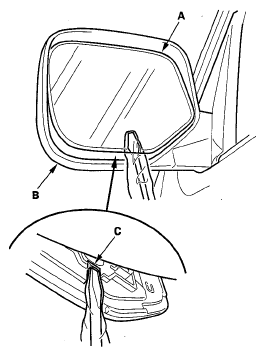

Fig 1: Identifying Mirror Holder And Mirror Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Put a shop towel in the opening between the lower edge of the mirror holder and the mirror housing (B) to prevent scratches. Insert a flat-tip screwdriver wrapped with protective tape through the slot (C) at the bottom of the mirror holder.
Twist the screwdriver to release the clips (A) from the actuator (B). Carefully pull out the bottom edge of the mirror holder (C), then separate the mirror holder from the actuator by releasing the hooks (D). Disconnect the mirror defogger connectors (E) from the heater pad terminals.

Fig 2: Clips, Actuator, Mirror Holder, Hooks And Mirror Defogger Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect the mirror defogger connectors.
Reattach the hooks of the mirror holder to the actuator, then position the mirror holder on the actuator. Carefully push on the clip portions of the mirror holder until the mirror holder locks into place.
Check the operation of the actuator.
