Home >> Honda >> 2014 >> Pilot EX, FWD >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Steering Wheel Disassembly/Reassembly

Steering Wheel Disassembly/Reassembly

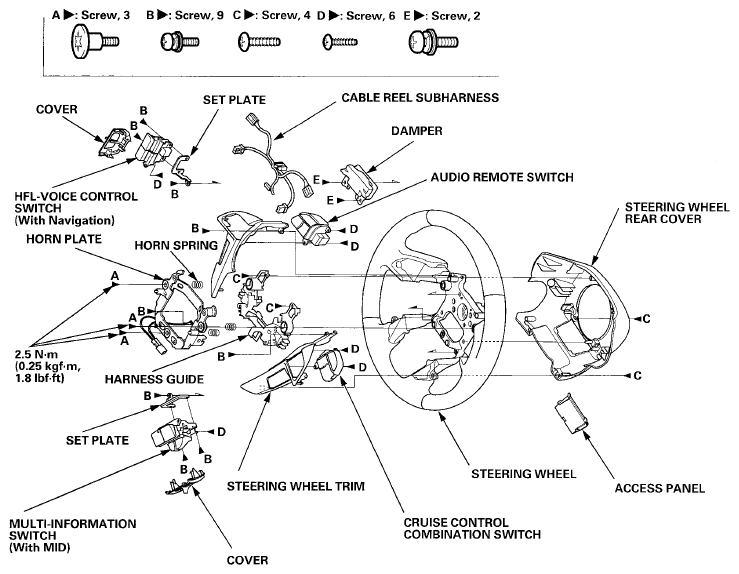

Fig 1: Identifying Steering Wheel Assembly Components

G08087961

Courtesy of AMERICAN HONDA MOTOR CO., INC.
