Exploded View

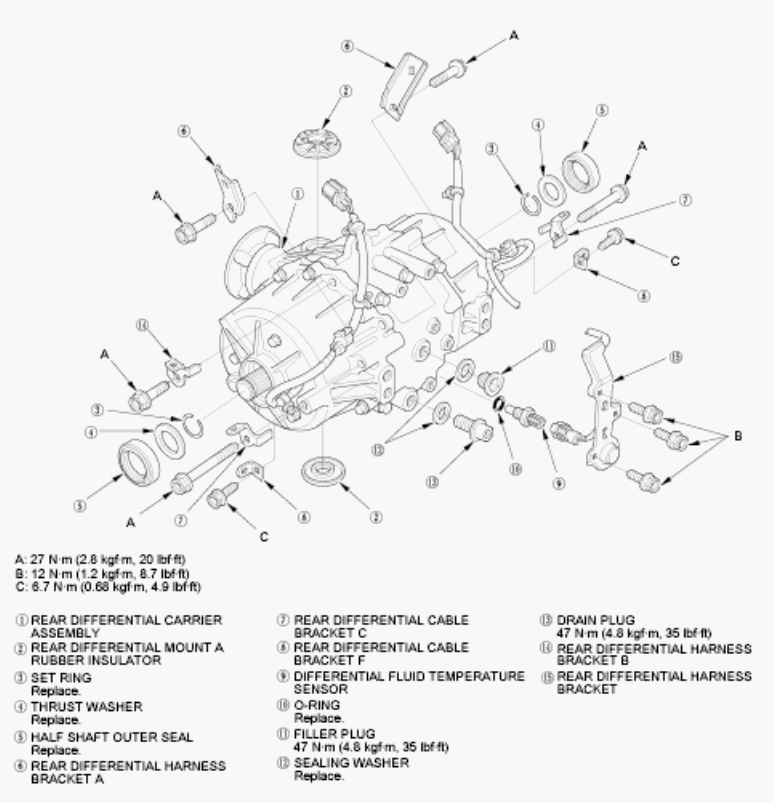

Fig 1: Exploded View Of Rear Differential Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driveshaft remover 07AAD-S9VA000

1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
2. Drain the differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT ).
3. Make a reference mark (A) across the propeller shaft (B), and the rear differential companion flange (C). Separate the propeller shaft from the rear differential.
   NOTE: Suspend the propeller shaft with an appropriate size wire or nylon strap.
   Fig 2: Identifying Mark On Propeller Shaft And Transfer Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the rear driveshaft (see REAR DRIVESHAFT REMOVAL ).
5. Disconnect the right rear driveshaft inboard joint (A) from the differential (B) using the driveshaft remover (C).
   NOTE:

   • This is a prying tool, do not strike it with a hammer.
   • Suspend the right rear driveshaft with an appropriate size wire or nylon strap.
   Fig 3: Prying Out Inboard Joint From Differential

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Place a transmission jack under the rear differential (A).
   Fig 4: Identifying Transmission Jack Under Rear Differential

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

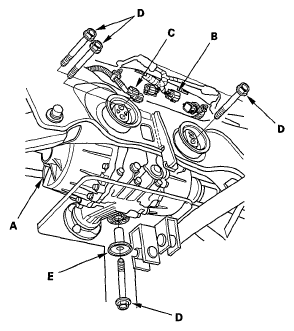

7. Disconnect the 6P (B) and 2P (C) connectors, then remove the mounting bolts (D) and washer (E).
8. Lower the rear differential a little on the transmission jack, then separate the right rear driveshaft inboard joint (A) from the rear differential.
   Fig 5: Identifying Breather Hose, Rear Differential And Rings

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

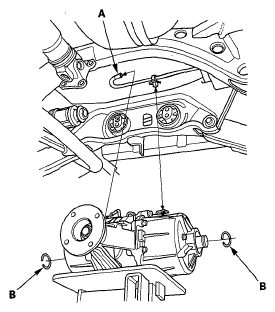

9. Disconnect the breather hose (A) from the rear differential and remove the set rings (B).
10. Lower the rear differential on the transmission jack.
