Rear Differential Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Place the rear differential on a transmission jack.
Install new set rings (A) into the groove of the rear differential.

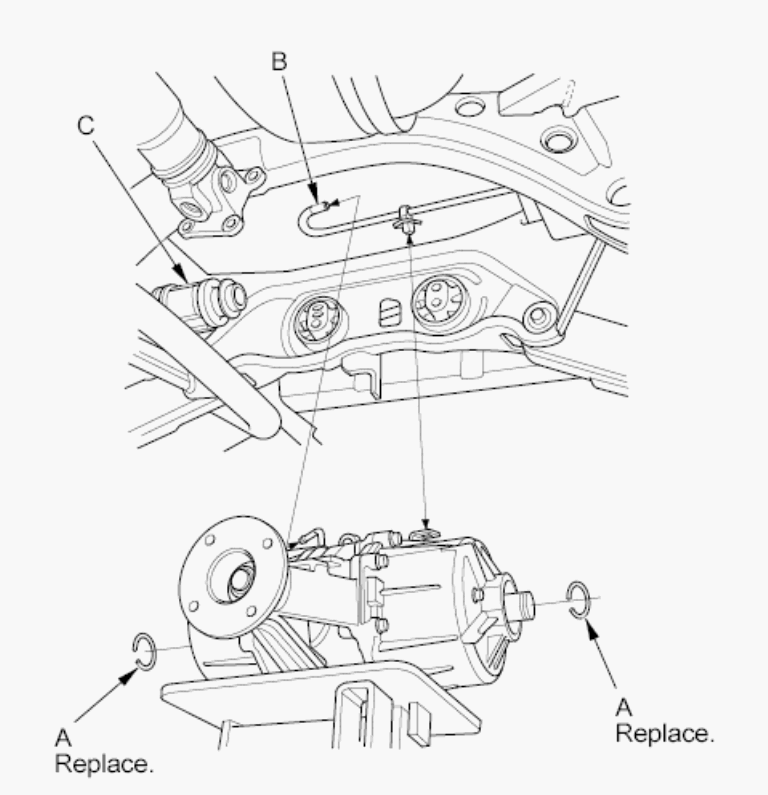

Fig 1: Identifying Breather Tube To Rear Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the rear differential a little on the transmission jack, then connect the breather tube (B) to the rear differential.
Apply 1.5-2.0 g (0.05-0.07 oz) of super high temp urea grease (P/N 08798-9002) to the splines of the right rear driveshaft inboard joint (C), then install the right rear driveshaft inboard joint to the rear differential.
Raise the rear differential to the mounting level, then install new mounting bolts (A).

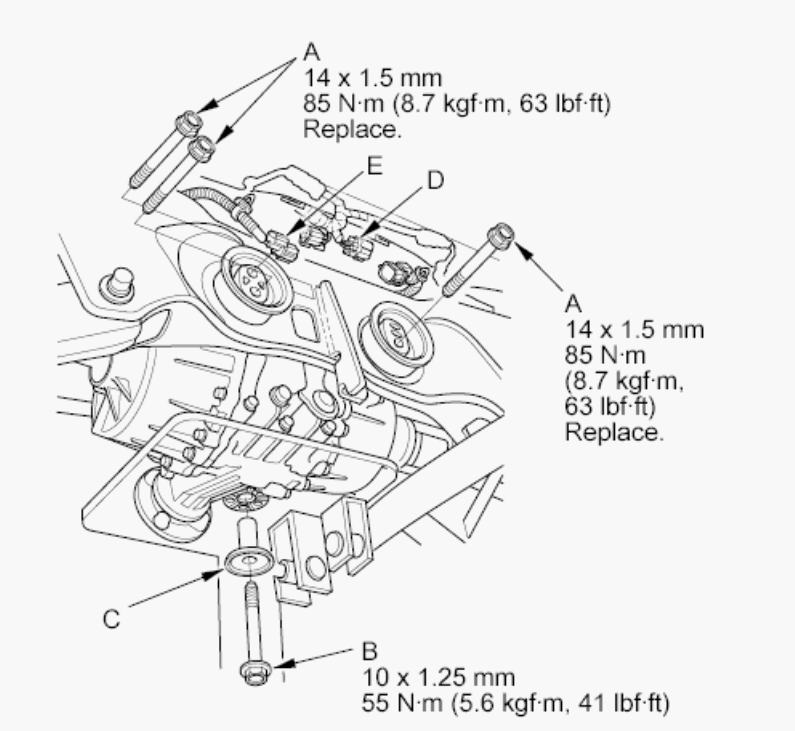

Fig 2: Rear Differential Mounting Bolts And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mounting bolt (B) and the stop (C).
Connect the 6P connector (D) and 2P connector (E).
Install the left rear driveshaft (see REAR DRIVESHAFT INSTALLATION ).
Attach the propeller shaft (A) to the rear differential (B) by aligning the reference marks (C) you made during the removal procedure. Then install new flange bolts(D) to the specified torque.
NOTE: When replacing the rear differential, align the factory reference marks (E).

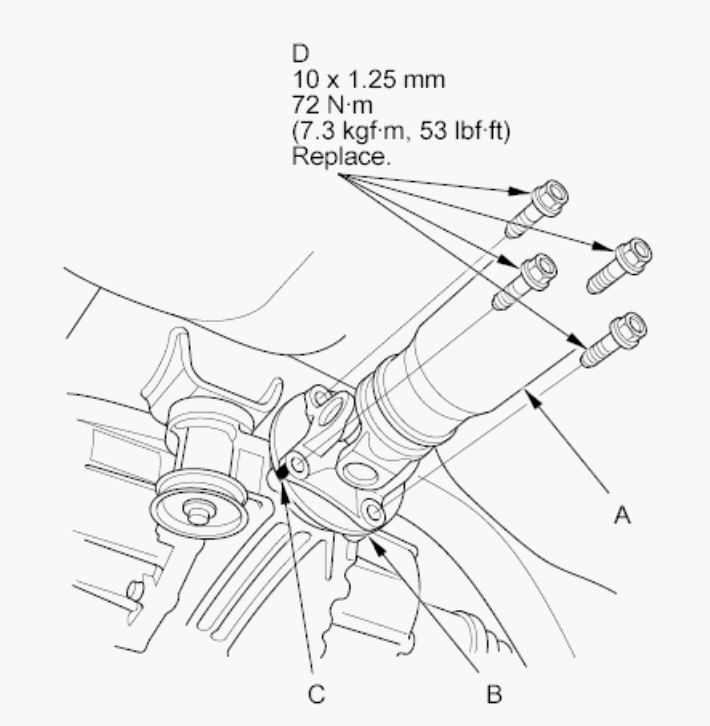

Fig 3: Identifying Rear Differential On Propeller Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

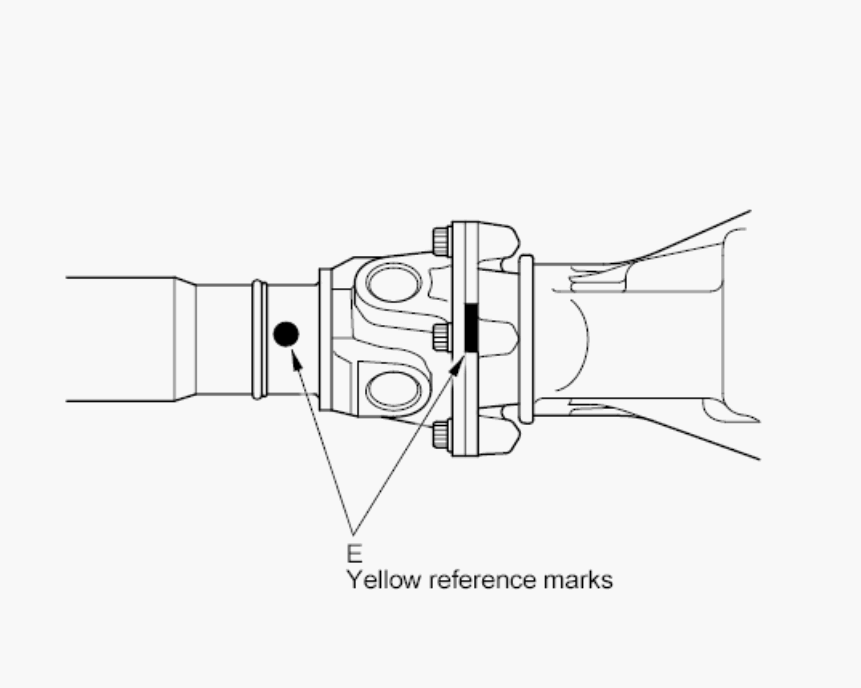

Fig 4: Identifying Yellow Reference Marks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the differential with recommended fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT ).
Lower the vehicle.
Test-drive the vehicle.
