Manual Initialization

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine (the VTM-4 indicator comes on, and the VTM-4 LOCK switch indicator is off).
  2. Apply the brakes, and move the shift lever to either R, 1, or 2, then push the VTM-4 LOCK button (the VTM-4 indicator stays on, and the VTM-4 LOCK switch indicator is on). The 4WD system is now in lock mode.
  3. Turn the ignition switch to LOCK (0).
  4. Turn the ignition switch to ON (II) (the VTM-4 indicator and the VTM-4 LOCK indicator both come on for 4 seconds, then go off). The VTM-4 control unit is initialized.

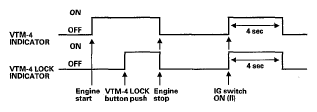

Fig 1: VTM-4 Indicator And VTM-4 LOCK Indicator Both - Blinking Pattern
G05964815Courtesy of AMERICAN HONDA MOTOR CO., INC.
