Service Check Signal Circuit (SCS) Method
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on level ground. Shift to P, then turn off the engine.
- Release the parking brake pedal.
- With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
- Turn the ignition switch to ON (II).
- Make sure the HDS communicates with the vehicle and the VTM-4 control unit. If it does not go to DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).

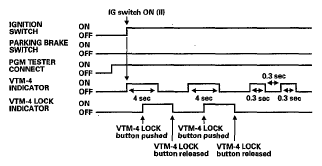

- Short the SCS circuit to body ground with the HDS.
- The VTM-4 indicator comes on and stays on for 4 seconds. Press and hold the VTM-4 LOCK button while the VTM-4 indicator is on.
- When the VTM-4 indicator goes off, release the VTM-4 LOCK button.
- The VTM-4 indicator comes on and stays on for 4 seconds. Press and hold the VTM-4 LOCK button while the VTM-4 indicator is on.
- When the VTM-4 indicator goes off, release the VTM-4 LOCK button. The VTM-4 indicator will blink twice quickly to confirm that the DTCs have been cleared from the VTM-4 control unit memory.NOTE: If the VTM-4 indicator does not blink twice quickly, the memory has not been cleared. Turn the ignition switch to LOCK (0), then repeat steps 4 through 10.
- Turn the ignition switch to LOCK (0), then disconnect the HDS from the data link connector (DLC).
