Oil Pan Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.
  2. Clean and dry the oil pan mating surfaces.
  3. Apply liquid gasket, (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009), evenly to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:

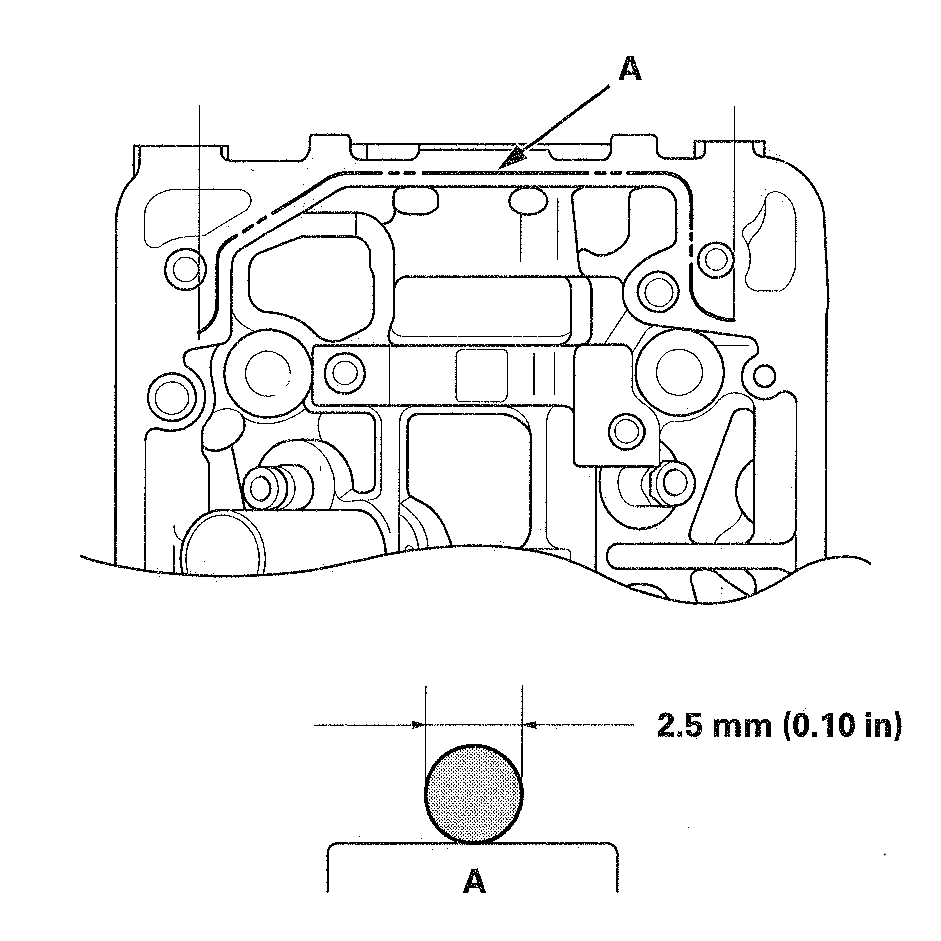

    • Apply a 2.5 mm (.10 in) diameter bead of liquid gasket along with broken line (A).
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
    Fig 1: Identifying Liquid Gasket Applying Area
    G00509856Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the oil pan on the engine block.
  5. Tighten the bolts in three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.7 lbf.ft).
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the oil pan.
    Fig 2: Identifying Oil Pan Bolts Tightening Sequence
    G05961124Courtesy of AMERICAN HONDA MOTOR CO., INC.

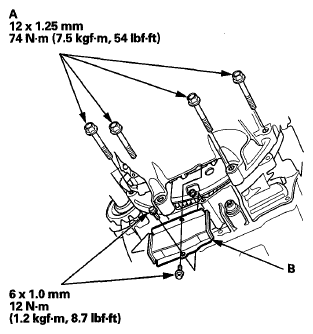

  6. Tighten the four bolts (A) securing the transmission, then install the torque converter cover (B).
    Fig 3: Torque Converter Cover & Bolts With Torque Specifications
    G05961125Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Connect the crankshaft position (CKP) sensor connector (A), then install the CKP sensor cover (B) and the bolt (C).
    Fig 4: Crankshaft Position Sensor Connector & Bolt With Torque Specifications
    G05961126Courtesy of AMERICAN HONDA MOTOR CO., INC.

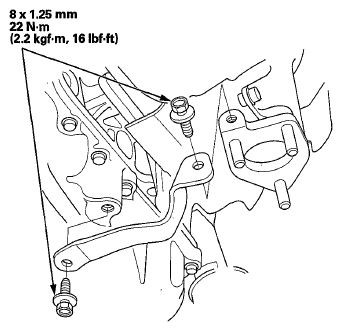

  8. Install the rear warm up three way catalytic converter (rear WU-TWC) bracket.
    Fig 5: Rear Warm Up Three Way Catalytic Converter (Rear WU-TWC) Bracket With Torque Specifications
    G05961127Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If the engine is still in the vehicle, do the following steps.
  10. Install exhaust pipe A using new gaskets and new self-locking nuts (see step 34 on ENGINE INSTALLATION ).
  11. Install the front subframe stiffener (see step 35 on ENGINE INSTALLATION ).
  12. Refill the engine with recommended engine oil (see ENGINE OIL REPLACEMENT ).
