Parking Brake Shoe Replacement: Disassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheels.
Release the parking brake, and remove the rear brake caliper and brake disc/drum (see REAR BRAKE DISC REPLACEMENT ).
Disconnect and remove the upper return springs (A), then remove the shoe guide plate (B).

Fig 1: Identifying Upper Return Springs And Shoe Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tension pins (A) by pushing and turning the retainers (B) and turning the pin.

Fig 2: Identifying Tension Pins And Retainers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the connecting rod (A) and the rod spring (B).

Fig 3: Identifying Connecting Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the parking brake shoe assembly.
Remove the forward brake shoe (A) and the adjuster assembly (B) by removing the lower return spring (C).

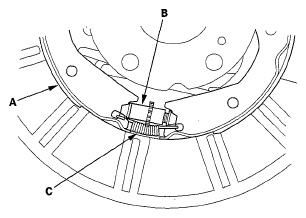

Fig 4: Locating Forward Brake Shoe, Adjuster Assembly And Lower Return Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rearward brake shoe (A) by disconnecting the parking brake cable (B) from the parking brake lever (C).

Fig 5: Identifying Rearward Brake Shoe, Parking Brake Cable And Parking Brake Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the U-clip (A), wave washer (B), and parking brake lever (C) from the brake shoe (D).

Fig 6: Identifying U-Clip, Wave Washer, Parking Brake Lever And Brake Shoe

Courtesy of AMERICAN HONDA MOTOR CO., INC.
