Front Brake Pad Inspection and Replacement: Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the front wheels.
Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the backing plate.
Brake pad thickness:

Standard: 11.6-12.2 mm (0.46-0.48 in.)

Service limit: 1.0 mm (0.039 in.)

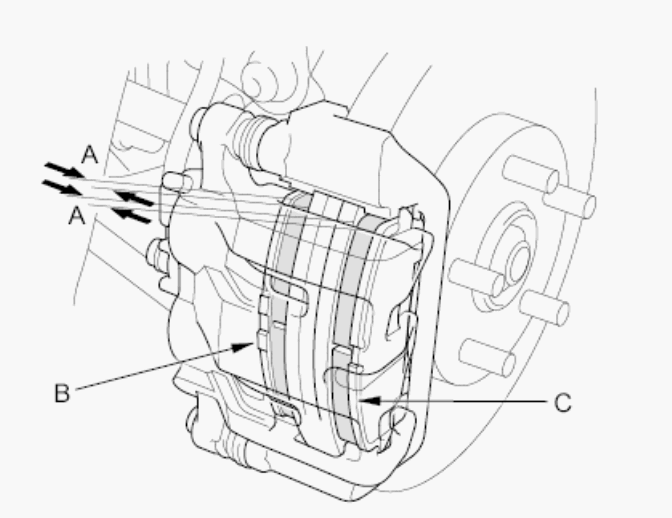

Fig 1: Checking Thickness Of Inner Pad And Outer Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the brake pad thickness of any of the pads is less than the service limit, replace the front brake pads as a set.
Clean the mating surface of the brake disc and the inside of the wheel, then install the front wheels.
