Brake Hose and Line Inspection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the brake hoses for damage, deterioration, leaks, interference, and twisting.
- Check the brake lines for damage, rusting, and leaks. Also check for bent brake lines.
- Check for leaks at hose and line joints and connections, and retighten if necessary.

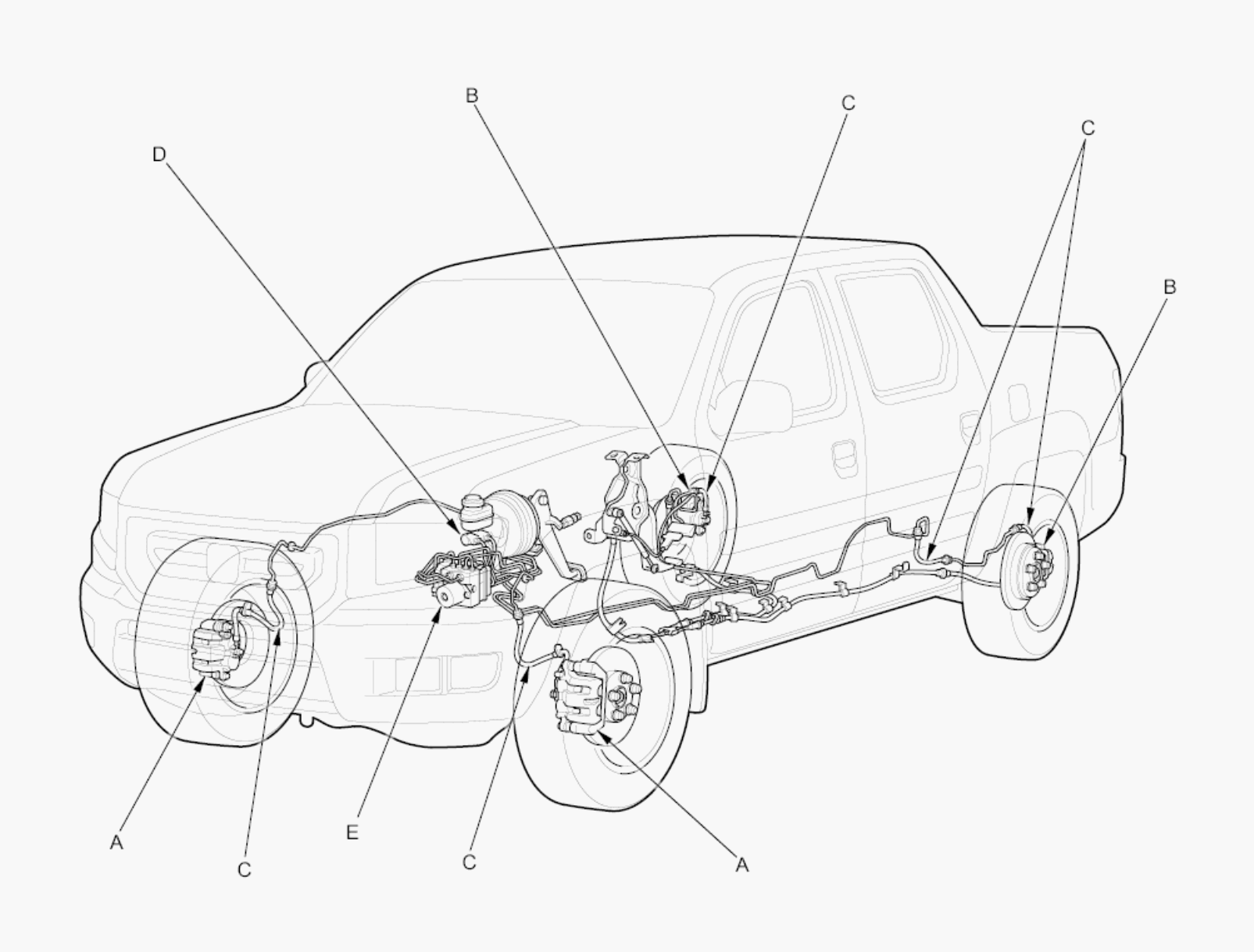

- Check the master cylinder and VSA modulator-control unit for damage and leaks.BRAKE HOSE AND LINE INSPECTION REFERENCE CHART
Connection Point Component Connected to Specified Torque Value Note A Front brake caliper Brake hose 34 N.m (3.5 kgf.m, 25 lbf.ft) Banjo bolt Bleed screw 9.0 N.m (0.9 kgf.m, 7.0 lbf.ft) B Rear brake caliper Brake hose 34 N.m (3.5 kgf.m, 25 lbf.ft) Banjo bolt Bleed screw 9.0 N.m (0.9 kgf.m, 6.5 lbf.ft) C Brake hose Brake line 15 N.m (1.5 kgf.m, 11 lbf.ft) Flare nut D Master cylinder Brake line 22 N.m (2.2 kgf.m, 16 lbf.ft) Flare nut E VSA modulator-control unit Brake line (12 mm nut) 22 N.m (2.2 kgf.m, 16 lbf.ft) Flare nut Brake line (10 mm nut) 15 N.m (1.5 kgf.m, 11 lbf.ft) Flare nut
