XM Antenna Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the nut (A) from the XM antenna (B).

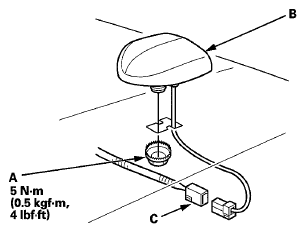

    Fig 1: XM Antenna & Nut With Torque Specifications
    G05967020Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C) and remove the XM antenna.
  4. Install the XM antenna in the reverse order of removal.
