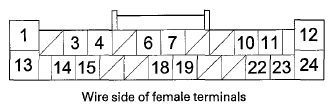

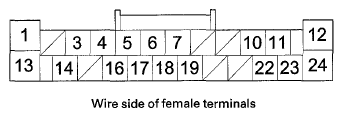

Audio Unit Connector A (24P)
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
WIRE COLOR REFERENCE TABLE
| Cavity | Wire Color | Connect to | ||||
|---|---|---|---|---|---|---|
| A1 | YEL | Dash lights brightness controller in the gauge control module (ILL-) | ||||
| A3 | LT BLU | Data link connector (DLC) (K-LINE) | ||||
| A4 | LT GRN(1) | Rear controller and screen (SCTY3) | ||||
| PNK(2) | Navigation display unit (SCTY2) | |||||
| A5 | BRIM | Audio remote switch ground (REMOTE GND) | ||||
| A6 | YEL | Stereo amplifier (RR PRE-) | ||||
| A7 | BRN | Stereo amplifier (RR PRE+) | ||||
| A10 | PUR | Stereo amplifier (RL PRE-) | ||||
| A11 | LT BLU | Stereo amplifier (RL PRE+) | ||||
| A12 | BLK | Body ground to G402 (GND) | ||||
| A13 | LT BLU | No. 14 (7.5A) fuse in the under-dash fuse/relay box (ILL+) | ||||
| A14 | PUR | No. 35 (10A) fuse in the under-dash fuse/relay box (ACC) | ||||
| A15 | BLU | VSP and PCM (ICD Type) | ||||
| A16 | PNK | Audio remote switch (REMOTE) | ||||
| A17 | YEL | Stereo amplifier (SWD +B) | ||||
| A18 | PNK | Stereo amplifier (FR PRE-) | ||||
| A19 | BLU | Stereo amplifier (FR PRE+) | ||||
| A22 | RED | Stereo amplifier (FL PRE-) | ||||
| A23 | GRN | Stereo amplifier (FL PRE+) | ||||
| A24 | WHT | No. 17 (20A) fuse in the under-hood fuse/relay box (+B) | ||||
|
||||||
With rear entertainment system
WIRE COLOR REFERENCE TABLE
| Cavity | Wire Color | Connect to |
|---|---|---|
| A1 | YEL | Dash lights brightness controller in the gauge control module (ILL-) |
| A3 | LT BLU | Data link connector (DLC) (K-LINE) |
| A4 | RED | Rear controller and screen (SCTY3) |
| A5 | BRN | Audio remote switch ground (REMOTE GND) |
| A6 | YEL | Stereo amplifier (RR PRE-) |
| A7 | BRN | Stereo amplifier (RR PRE+) |
| A10 | PUR | Stereo amplifier (RL PRE-) |
| A11 | LT BLU | Stereo amplifier (RL PRE+) |
| A12 | BLK | Body ground to G402 (GND) |
| A13 | LT BLU | No. 14 (7.5A) fuse in the under-dash fuse/relay box (ILL+) |
| A14 | PUR | No. 35 (10A) fuse in the under-dash fuse/relay box (ACC) |
| A16 | PNK | Audio remote switch (REMOTE) |
| A17 | YEL | Stereo amplifier (SWD +B) |
| A18 | PNK | Stereo amplifier (FR PRE-) |
| A19 | BLU | Stereo amplifier (FR PRE+) |
| A22 | RED | Stereo amplifier (FL PRE-) |
| A23 | GRN | Stereo amplifier (FL PRE+) |
| A24 | WHT | No. 17 (20A) fuse in the under-hood fuse/relay box (+B) |
Without rear entertainment system
WIRE COLOR REFERENCE TABLE
| Cavity | Wire Color | Connect to |
|---|---|---|
| A1 | YEL | Gauge control module (ILL-) |
| A3 | LT BLU | Data link connector (DLC) (K-LINE) |
| A4 | RED | Multiplex integrated control unit (MICU) (SCTY1) |
| A5 | BRN | Audio remote switch ground (REMOTE GND) |
| A6 | BLU*1 | Right rear door speaker (RR SP-) |
| A6 | ORN*2 | Right rear door speaker (RR SP-) |
| A7 | RED*1 | Right rear door speaker (RR SP+) |
| A7 | BLU*2 | Right rear door speaker (RR SP+) |
| A10 | BLU*1 | Left rear door speaker (RL SP-) |
| A10 | PUR*2 | Left rear door speaker (RL SP-) |
| A11 | RED*1 | Left rear door speaker (RL SP+) |
| A11 | PNK*2 | Left rear door speaker (RL SP+) |
| A12 | BLK | Body ground to G402 (GND) |
| A13 | LT BLU | No. 14 (7.5A) fuse in the under-dash fuse/relay box (ILL+) |
| A14 | PUR | No. 35 (10A) fuse in the under-dash fuse/relay box (ACC) |
| A15*3 | BLU | PCM (VSP) |
| A16 | PNK | Audio remote switch (REMOTE) |
| A17 | YEL | Stereo amplifier (SWD +B) |
| A18 | BRN | Front passenger's door speaker, right front tweeter (FR R-) |
| A19 | RED | Front passenger's door speaker, right front tweeter (FR R+) |
| A22 | RED | Driver's door speaker, left front tweeter (FR L-) |
| A23 | BLU | Driver's door speaker, left front tweeter (FR L+) |
| A24 | WHT | No. 17 (20A) fuse in the under-hood fuse/relay box (+B) |
| *1: '09-10 models *2: '11 model *3: Not Used |
||
WIRE COLOR REFERENCE TABLE
| Cavity | Wire Color | Connect to |
|---|---|---|
| A1 | YEL | Dash lights brightness controller in the gauge control module (ILL-) |
| A3 | LT BLU | Data link connector (DLC) (K-LINE) |
| A4 | RED | Multiplex integrated control unit (MICU) (SCTY1) |
| A6 | BLU*1 | Right rear door speaker (RR SP-) |
| A6 | ORN*2 | Right rear door speaker (RR SP-) |
| A7 | RED*1 | Right rear door speaker (RR SP+) |
| A7 | BLU*2 | Right rear door speaker (RR SP+) |
| A10 | BLU*1 | Left rear door speaker (RL SP-) |
| A10 | PUR*2 | Left rear door speaker (RL SP-) |
| A11 | RED*1 | Left rear door speaker (RL SP+) |
| A11 | PNK*2 | Left rear door speaker (RL SP+) |
| A12 | BLK | Body ground to G402 (GND) |
| A13 | LT BLU | No. 14 (7.5A) fuse in the under-dash fuse/relay box (ILL+) |
| A14 | PUR | No. 35 (10A) fuse in the under-dash fuse/relay box (ACC) |
| A15 | BLU | PCM (VSS OUT) |
| A18 | BRN | Front passenger's door speaker, right front tweeter (FR R-) |
| A19 | RED | Front passenger's door speaker, right front tweeter (FR R+) |
| A22 | RED | Driver's door speaker, left front tweeter (FR L-) |
| A23 | BLU | Driver's door speaker, left front tweeter (FR L+) |
| A24 | WHT | No. 17 (20A) fuse in the under-hood fuse/relay box (+B) |
| *1: '09-10 models *2: '11 model |
||
