Stereo Amplifier Removal/Installation
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
- Remove these items:
- Glove box (see GLOVE BOX REMOVAL/INSTALLATION )
- Passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
- Right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS )

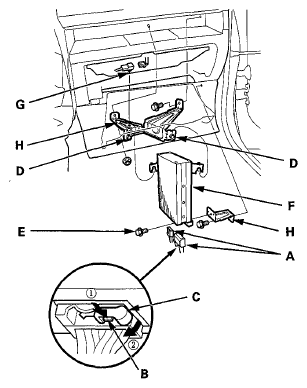

- Disconnect the connectors (A).NOTE: When you disconnect stereo amplifier connector A, while pushing the tab (B), pull the lever (C) up, and disconnect the connector.
- Loosen the bolts (D) and remove the bolt (E), then pull out the stereo amplifier (F).
- Detach the harness clip (G). Remove the bolts, nut, and the amplifier stays (H).
- Install the stereo amplifier in the reverse order of removal.
