Center Speaker and Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not scratch the dashboard.

Remove the center upper panel (see CENTER UPPER PANEL REMOVAL/INSTALLATION ).
Remove the screws and the speaker (A).

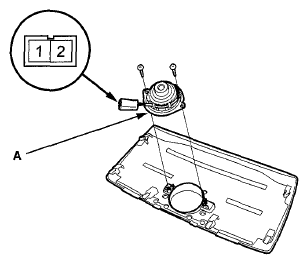

Fig 1: Identifying Speaker & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ω.
If the resistance is not as specified, replace the center speaker.
