Lever-Locked Connector: Disconnecting

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

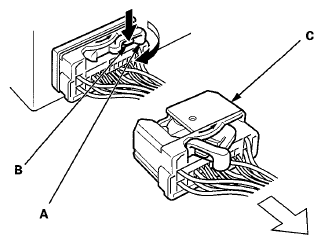

To disconnect the connector, pull the lever (A) while pushing the lock tab (B) down, then pull the connector (C).

Fig 1: Pulling Lever & Connector
G05966795Courtesy of AMERICAN HONDA MOTOR CO., INC.
