Multi-information Switch Test/Replacement
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

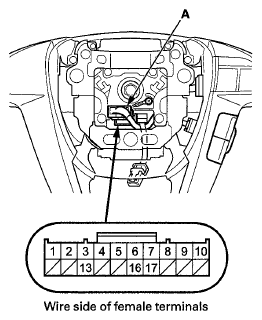

- Disconnect the 20P connector (A) from the cable reel.
- Check for continuity between cable reel 20P connector terminals No. 16 and No. 17.
There should be continuity.
- If the check is OK, but the system does not operate, check for the cable reel or audio remote switch.
- If the check is not as specified, go to step 4.

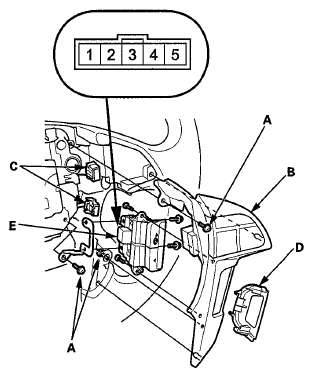

- Remove the three screws (A), then remove the steering wheel trim (B), and disconnect connectors (C) from each switches.
- Remove the cover (D).
- Remove the switch mounting screws, then remove the multi-information switch (E) from the steering wheel trim.
- Measure the resistance between terminals No. 1 and No. 5 in each position according to the table below.RESISTANCE REFERENCE TABLE
Position Resistance PREVIOUS (↑) About 33 Ω SEL/RESET About 1043 Ω NEXT (↓) About 363 Ω - If the resistance is not as specified or LED does not turn on, replace the multi-information switch. If the switch is OK, but there is a problem with the switch function, check the cable reel or the audio remote switch.
