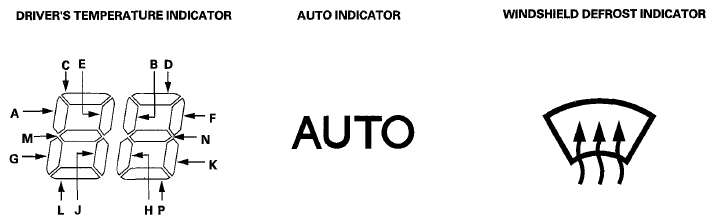

| A and AUTO |
An open in the in-car temperature sensor circuit (see DTC B1225 OR DTC INDICATOR A AND AUTO: AN OPEN IN THE IN-CAR TEMPERATURE SENSOR CIRCUIT
) |
| B and AUTO |
A short in the in-car temperature sensor circuit (see DTC B1226 OR DTC INDICATOR B AND AUTO: A SHORT IN THE IN-CAR TEMPERATURE SENSOR CIRCUIT
) |
| C and AUTO |
An open in the outside air temperature sensor circuit (see DTC B1227 OR DTC INDICATOR C AND AUTO: AN OPEN IN THE OUTSIDE AIR TEMPERATURE SENSOR CIRCUIT
) |
| D and AUTO |
A short in the outside air temperature sensor circuit (see DTC B1228 OR DTC INDICATOR D AND AUTO: A SHORT IN THE OUTSIDE AIR TEMPERATURE SENSOR CIRCUIT
) |
| E and AUTO |
An open in the sunlight sensor circuit (see DTC B1229 OR DTC INDICATOR E AND AUTO: AN OPEN IN THE SUNLIGHT SENSOR CIRCUIT
) |
| F and AUTO |
A short in the sunlight sensor circuit (see DTC B1230 OR DTC INDICATOR F AND AUTO: A SHORT IN THE SUNLIGHT SENSOR CIRCUIT
) |
| G and AUTO |
An open in the front evaporator temperature sensor circuit (see DTC B1231 OR DTC INDICATOR G AND AUTO: AN OPEN IN THE FRONT EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| H and AUTO |
A short in the front evaporator temperature sensor circuit (see DTC B1232 OR DTC INDICATOR H AND AUTO: A SHORT IN THE FRONT EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| J and AUTO |
An open in the driver's air mix control motor circuit (see DTC B1233 OR DTC INDICATOR J AND AUTO: AN OPEN IN THE DRIVER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| K and AUTO |
A short in the driver's air mix control motor circuit (see DTC B1234 OR DTC INDICATOR K AND AUTO: A SHORT IN THE DRIVER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| L and AUTO |
A problem in the driver's air mix control linkage, door, or motor circuit (see DTC B1235 OR DTC INDICATOR L AND AUTO: A PROBLEM IN THE DRIVER'S AIR MIX CONTROL LINKAGE, DOOR, OR MOTOR CIRCUIT
) |
| M and AUTO |
An open in the passenger's air mix control motor circuit (see DTC B1236 OR DTC INDICATOR M AND AUTO: AN OPEN IN THE PASSENGER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| N and AUTO |
A short in the passenger's air mix control motor circuit (see DTC B1237 OR DTC INDICATOR N AND AUTO: A SHORT IN THE PASSENGER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| P and AUTO |
A problem in the passenger's air mix control linkage, door, or motor circuit (see DTC B1238 OR DTC INDICATOR P AND AUTO: A PROBLEM IN THE PASSENGER'S AIR MIX CONTROL LINKAGE, DOOR, OR MOTOR CIRCUIT
) |
| AUTO |
Engine coolant temperature (ECT) sensor signal error. Check for DTCs in the PGM-FI system and go to the indicated DTC's troubleshooting. If no DTCs are found, replace the climate control unit, (see PASSENGER'S AIR MIX CONTROL MOTOR REPLACEMENT
) |
| A |
An open or short in the front mode control motor circuit (see DTC B1239 OR DTC INDICATOR A: AN OPEN OR SHORT IN THE FRONT MODE CONTROL MOTOR CIRCUIT
) |
| B |
A problem in the front mode control linkage, doors, or motor circuit (see DTC B1240 OR DTC INDICATOR B: A PROBLEM IN THE FRONT MODE CONTROL LINKAGE, DOORS, OR MOTOR CIRCUIT
) |
| C |
A problem in the front blower motor circuit (see DTC B1241 OR DTC INDICATOR C: A PROBLEM IN THE FRONT BLOWER MOTOR CIRCUIT
) |
| F |
An open in the rear air mix control motor circuit (see DTC B1244 OR DTC INDICATOR F: AN OPEN IN THE REAR AIR MIX CONTROL MOTOR CIRCUIT
) |
| G |
A short in the rear air mix control motor circuit (see DTC B1245 OR DTC INDICATOR G: A SHORT IN THE REAR AIR MIX CONTROL MOTOR CIRCUIT
) |
| H |
A problem in the rear air mix control linkage, door, or motor circuit (see DTC B1246 OR DTC INDICATOR H: A PROBLEM IN THE REAR AIR MIX CONTROL LINKAGE, DOOR, OR MOTOR CIRCUIT
) |
| M |
A problem in the rear blower motor circuit (see DTC B1223 OR DTC INDICATOR M: A PROBLEM IN THE REAR BLOWER MOTOR CIRCUIT
) |
| N |
An open in the rear evaporator temperature sensor circuit (see DTC B1213 OR DTC INDICATOR N: AN OPEN IN THE REAR EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| P |
A short in the rear evaporator temperature sensor circuit (see DTC B1214 OR DTC INDICATOR P: A SHORT IN THE REAR EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| A and WINDSHIELD DEFROST |
An open in the humidity sensor circuit (see DTC B2967 OR DTC INDICATOR A AND WINDSHIELD DEFROST: AN OPEN IN THE HUMIDITY SENSOR CIRCUIT
), a short in the humidity sensor circuit (see DTC B2968 OR DTC INDICATOR A AND WINDSHIELD DEFROST: A SHORT IN THE HUMIDITY SENSOR CIRCUIT
) |
| Band WINDSHIELD DEFROST |
An open in the A/C pressure sensor circuit (see DTC B2979 OR DTC INDICATOR B AND WINDSHIELD DEFROST: AN OPEN IN THE A/C PRESSURE SENSOR CIRCUIT
), a short in the A/C pressure sensor circuit (see DTC B2980 OR DTC INDICATOR B AND WINDSHIELD DEFROST: A SHORT IN THE A/C PRESSURE SENSOR CIRCUIT
) |
| C and WINDSHIELD DEFROST |
An open or short in the recirculation control motor circuit (see DTC B1215 OR DTC INDICATOR C AND WINDSHIELD DEFROST: AN OPEN OR SHORT IN THE RECIRCULATION CONTROL MOTOR CIRCUIT
) |
| D and WINDSHIELD DEFROST |
A problem in the recirculation control linkage, door, or motor circuit (see DTC B2983 OR DTC INDICATOR D AND WINDSHIELD DEFROST: A PROBLEM IN THE RECIRCULATION CONTROL LINKAGE, DOOR, OR MOTOR CIRCUIT
) |
