Front Strake Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body.

Remove the bolts, then remove the front strake (A) from the front inner fender (B).

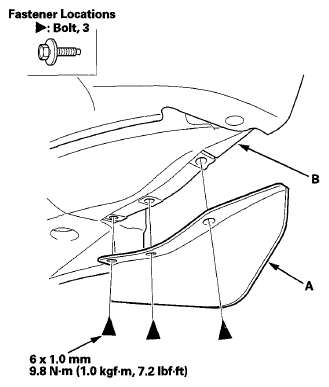

Fig 1: Front Strake & Front Inner Fender With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal.
