Front Seat Under Tray Replacement

For some models

1. Open the under tray (A).
   Fig 1: Identifying Under Tray

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Gently twist the under tray while pulling it out until one side comes off of the guide rail.
3. Tilt the removed side of the under tray down, then pull the other side off of the guide rail.
4. Remove the seat under tray slide plate (A).
   1. Remove the passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
   2. Remove the bolts.

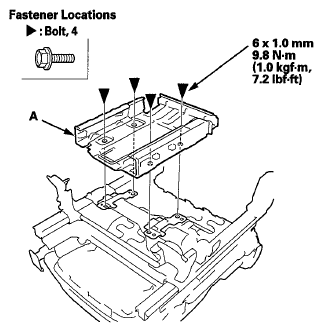

   Fastener Locations

   Fig 2: Seat Under Tray Slide Plate & Bolts With Torque Specifications
   Courtesy of AMERICAN HONDA MOTOR CO., INC.
