How To Clear DTCs

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located under the dash on the driver's side of the dashboard.

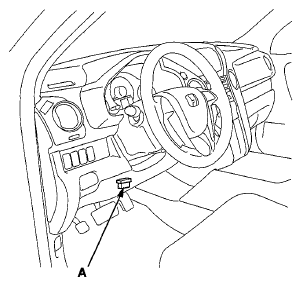

Fig 1: Identifying Data Link Connector (DLC)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn't, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
Clear the DTC(s) by following the screen prompts on the HDS.
NOTE: See the HDS Help menu for specific instructions.
Turn the ignition switch to LOCK (0).
