Reverse Inhibitor Control
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

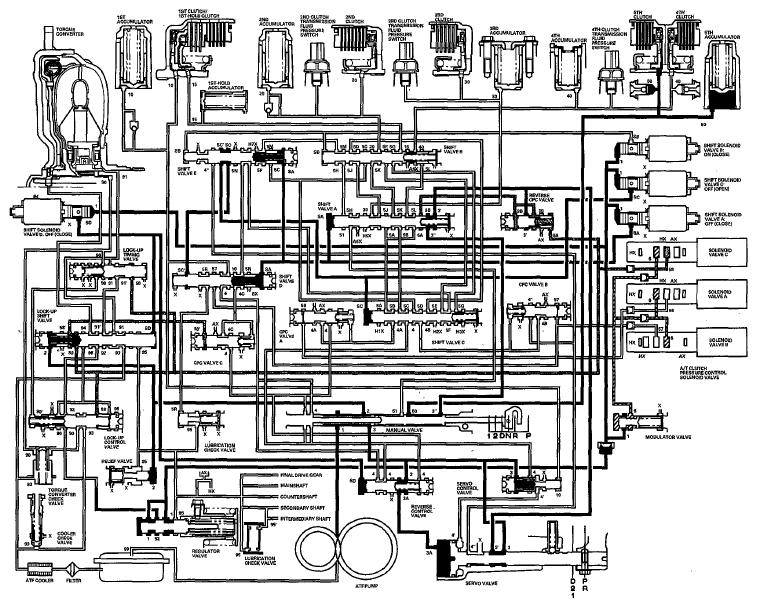

When R is selected while the vehicle is moving forward at a speed over 6 mph (10 km/h), the PCM commands shift solenoid valve D to remain OFF so that shift solenoid valve D pressure (SD) is not applied to the reverse control valve. Line pressure (3) stops at the reverse control valve, and is not applied to the servo valve. No power is transmitted to the reverse direction.
NOTE:
When used, "left" or "right" indicates direction on the hydraulic circuit.
