Rear Seat Leg Guide Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Pull the seat leg guide cover (A) up to detach the clips (B, C), then remove it.

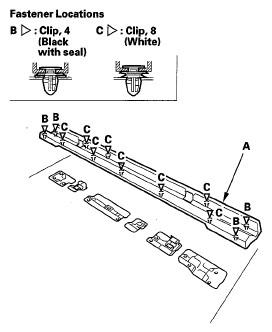

Fig 1: Identifying Seat Leg Guide Cover And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the seat leg guide (A).

Fig 2: Seat Leg Guide And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the leg guide in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Before reinstalling the leg guide cover, adjust the seat leg guide (A) position.
- Push the clips into place securely.
Fig 3: Adjusting Seat Leg Guide With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
