Front Seat Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Do the ODS unit initialization (see ODS UNIT INITIALIZATION ) after passenger's seat replacement.

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or tear the seat covers.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Tilt the steering wheel all the way up.
  2. Passenger's seat: Slide the seat all the way forward, and remove the rear outer seat track cover (A) from the back of the seat track by detaching the clips and releasing the hook (B).
    Fig 1: Removing Rear Outer Seat Track Cover
    G05965727Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Passenger's seat: Remove the rear inner seat track cover (A) from the back of the seat track by detaching the clips.
    Fig 2: Identifying Rear Inner Seat Track Cover
    G05965728Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Passenger's seat: Remove the bolt (A), and release the hook (B), then remove the lower anchor bracket (C) from the outer side front passenger's weight sensor (D).
    Fig 3: Lower Anchor Bracket And Outer Side Front Passenger's Weight Sensor With Torque Specifications
    G05965729Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Detach the side clips and middle hooks (A), then remove the rear riser cover (B).

    Driver's seat

    Fig 4: Identifying Middle Hooks And Rear Riser Cover (Driver's Seat)
    G05965730Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Passenger's seat

    Fig 5: Identifying Middle Hooks And Rear Riser Cover (Passenger's Seat)
    G05965731Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Slide the seat fully to the rear to access the front riser cover.
  7. Detach the clip and release the hook (A), and remove the front riser cover (B) from both sides.
    Fig 6: Identifying Front Riser Cover And Hook
    G05965732Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), and wait at least 3 minutes before removing the seat.
  9. Remove the bolts securing the front seat (A), and remove the head restraint (B).

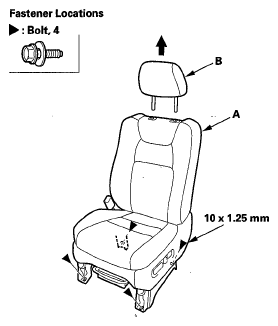

    Fig 7: Front Seat And Head Restraint With Torque Specifications
    G05965733Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Tilt the front seat forward and disconnect the side airbag connector (A) on all types of the seats, the seat wire harness connector (B) on the driver's 10-way power seat and the passenger's manual seat, the seat belt switch connector (C) and the seat position sensor harness connector (D) on the driver's manual height adjustable seat, and detach the harness clip (E) on the driver's seat.

    With navigation system: Disconnect the navigation unit connectors (F) and the GPS antenna harness connector (G) on the driver's 10-way power seat.

    With AC power outlet: Disconnect the AC inverter unit connector (H) on the passenger's manual height adjustable seat.

    Driver's manual height adjustable seat

    Fig 8: Identifying Seat Belt Switch Connector And Seat Position Sensor Harness Connector
    G05965734Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Driver's 10-way power seat

    Fig 9: Identifying Navigation Unit Connectors And GPS Antenna Harness Connector
    G05965735Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Passenger's manual seat

    Fig 10: Identifying Side Airbag Connector And Seat Wire Harness Connector
    G05965736Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the seat in the reverse order of removal, and note these items:
    • Apply medium strength liquid thread lock to the front seat mounting bolts before reinstallation.
    • Make sure each connector is plugged in properly.
    • Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten (1) and (2), then slide it forward and tighten (3) and (4).
    • Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).

      Driver's seat

      Fig 11: Driver's Seat Mounting Bolts With Torque Specifications
      G05965737Courtesy of AMERICAN HONDA MOTOR CO., INC.
    • Passenger's seat

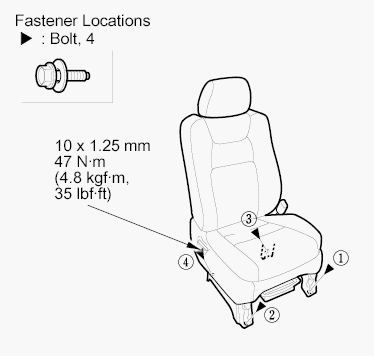

      Fig 12: Passenger's Seat Mounting Bolts With Torque Specifications
      G00509310Courtesy of AMERICAN HONDA MOTOR CO., INC.
