Exploded View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

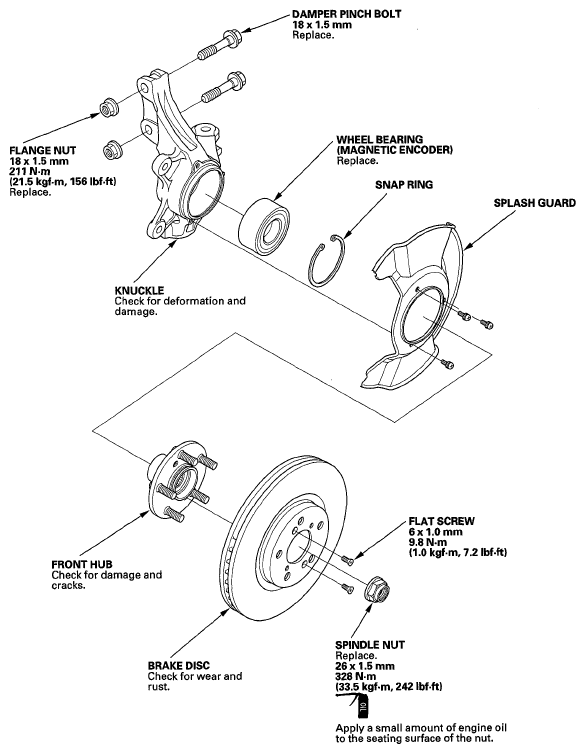

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball Joint Remover, 32 mm 07MAC-SL0A102
Ball Joint Thread Protector, 12 mm 07AAF-SDAA100
Ball Joint Puller 07AAC-SJCA120
Ball Joint Thread Protector, 14mm 07AAC-SJCA200
Hub Dis/Assembly Pin, 42 mm 07GAF-SD4A100
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 72 x 75 mm 07746-0010600
Support Base 07965-SD90100
Attachment, 96 mm 07948-SB00101
