Battery Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery (A), then install the battery setting plate (B).

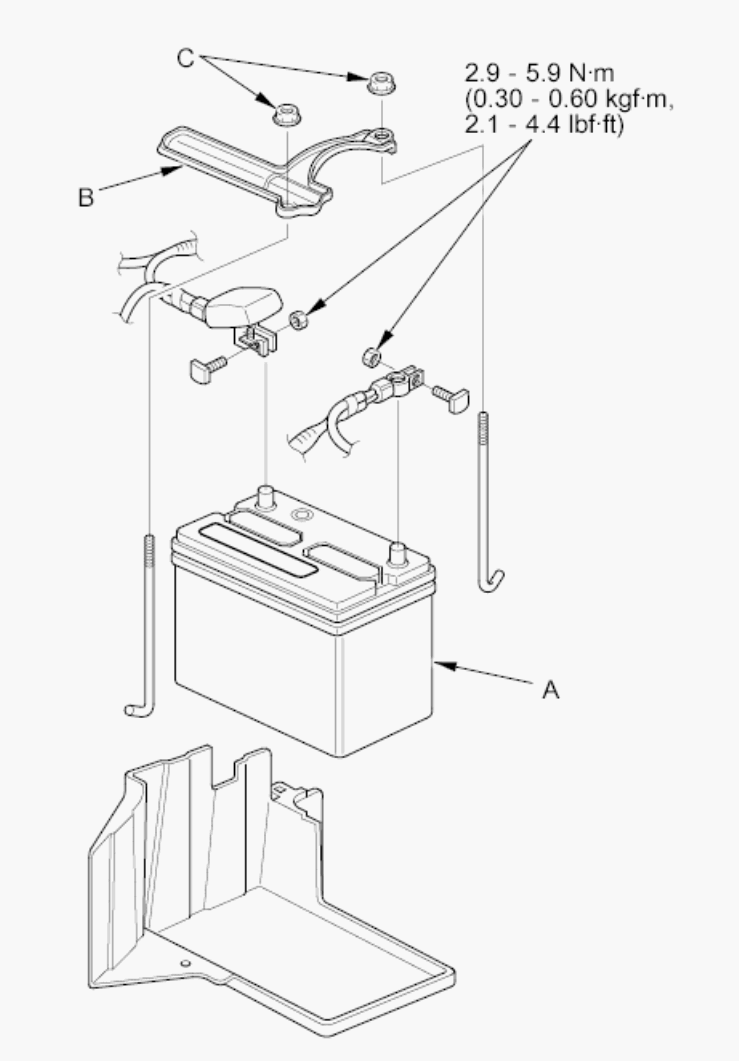

Fig 1: Identifying Battery, Battery Setting Plate And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery setting plate by tightening the nuts too much.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not connected in reverse.
