Oil Pan Installation

  1. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.
  2. Clean and dry the oil pan mating surfaces.
  3. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 2.5 mm (0.10 in) diameter bead of liquid gasket along the broken line (A).
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
      Fig 1: Identifying Broken Line On Oil Pan Mating Surface Of Engine Block
      G08078848Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the oil pan on the engine block.
  5. Tighten the bolts in three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.9 lbf.ft).
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the oil pan.
      Fig 2: Identifying Oil Pan Bolts Tightening Sequence
      G08078849Courtesy of AMERICAN HONDA MOTOR CO., INC.

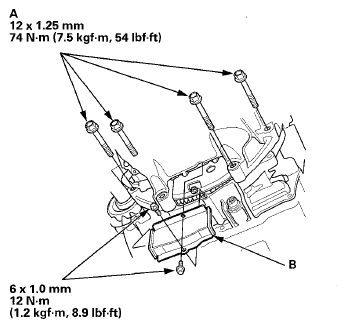

  6. Tighten the four bolts (A) securing the transmission, then install the torque converter cover (B).
    Fig 3: Torque Converter Cover And Bolts With Torque Specifications
    G08078850Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Connect the CKP sensor connector (A), then install the CKP sensor cover (B) and the bolt (C).
    Fig 4: CKP Sensor Cover, Connector And Bolt With Torque Specifications
    G08078851Courtesy of AMERICAN HONDA MOTOR CO., INC.

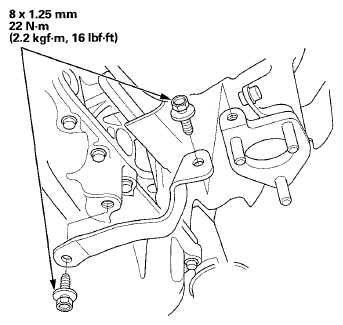

  8. Install the rear warm up TWC bracket.
    Fig 5: Rear Warm Up TWC Bracket Bolts With Torque Specifications
    G08078852Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If the engine is still in the vehicle, do the following steps.
  10. Install exhaust pipe A using new gaskets and new self-locking nuts (see step 29 under ENGINE INSTALLATION ).
  11. Install the front subframe stiffener (see step 30 under ENGINE INSTALLATION ).
  12. Refill the engine with the recommended engine oil (see ENGINE OIL REPLACEMENT ).
