Front Engine Mount Removal and Installation: Removal

  1. Remove the radiator (see RADIATOR AND FAN REPLACEMENT ).
  2. Lift and support the engine with a jack and a wood block under the engine/transmission.
  3. Disconnect the front engine mount actuator connector (A).

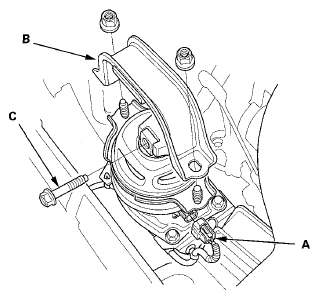

    Fig 1: Identifying Front Engine Mount Actuator Connector, Front Engine Mount Stop And Front Engine Mount Bolt
    G08078598Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the front engine mount stop (B), then remove the front engine mount bolt (C).
  5. Remove the front engine mount (A).

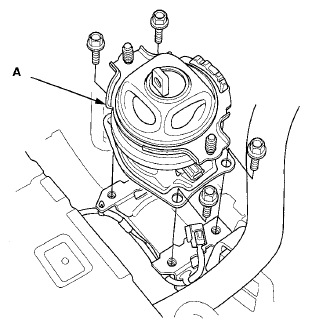

    Fig 2: Identifying Front Engine Mount
    G08078599Courtesy of AMERICAN HONDA MOTOR CO., INC.
