Honda
>>
2014
>>
Pilot EX, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Safety Indicator System
>>
Circuit Diagram
Circuit Diagram

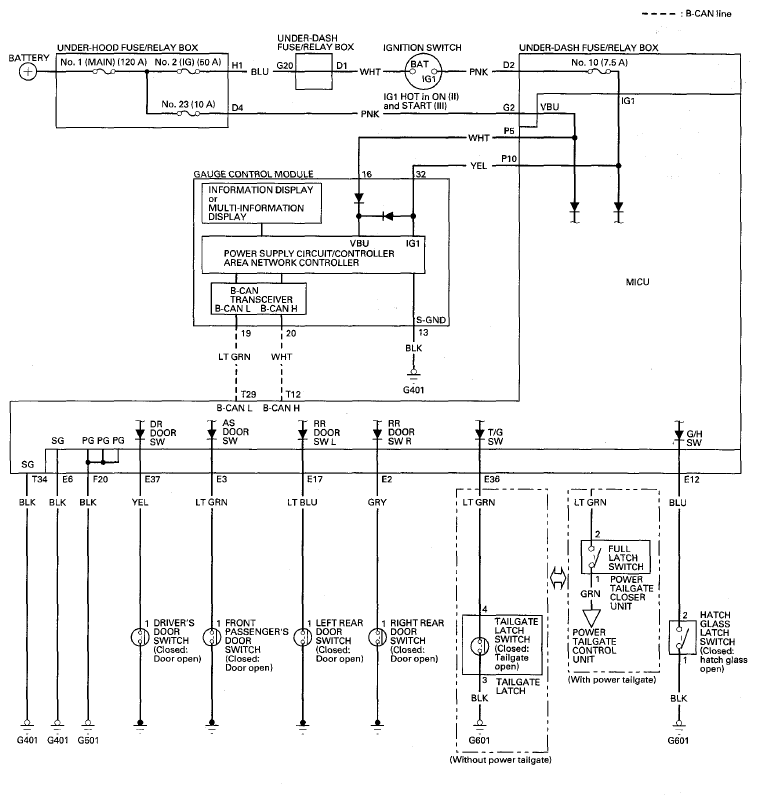

Fig 1: Safety Indicator System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
