Drive Belt Auto-Tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Remove the auto-tensioner.

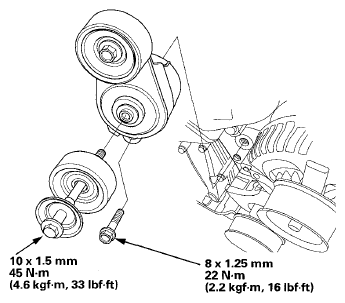

    Fig 1: Auto-Tensioner Replacement Components With Torque Specifications
    G08078457Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the auto-tensioner in the reverse order of removal.
