Rear Subframe Torque

NOTE:

When installing, align both positioning holes in the subframe with the positioning holes in the body using a screwdriver or tapered punch as a guide.
After removing the subframe mounting bolts, be sure to replace them with new ones.

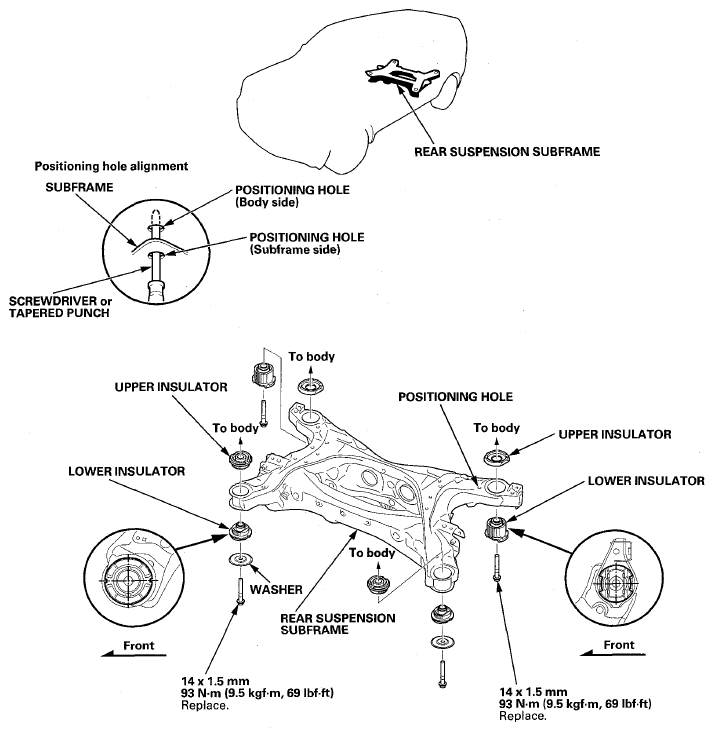

Fig 1: Rear Subframe Torque With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
