Pilot EX, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
Frame
>>
Frame Repair Chart
>>
Top View
Top View

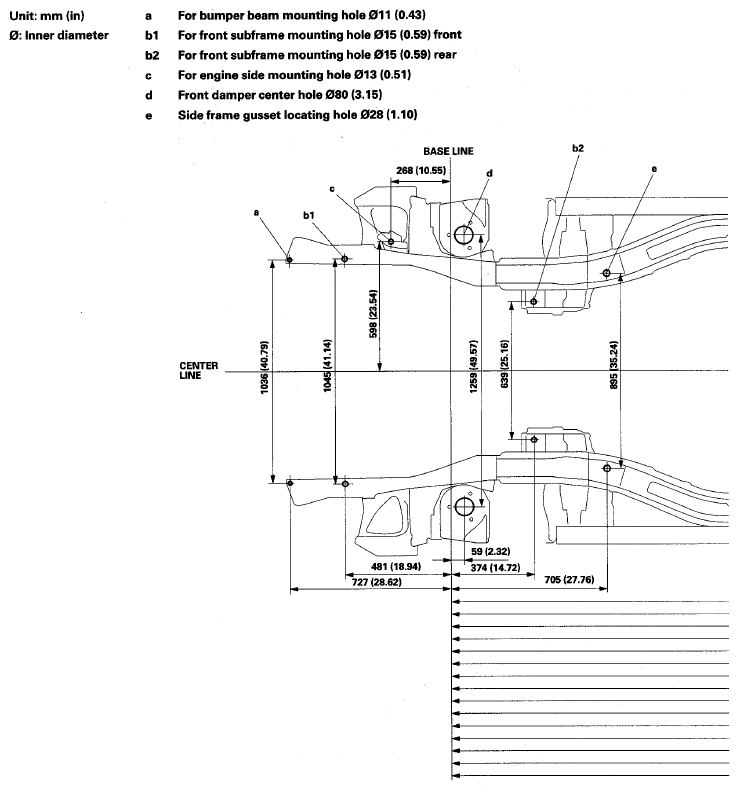

Fig 1: Frame Repair (Top View) - Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

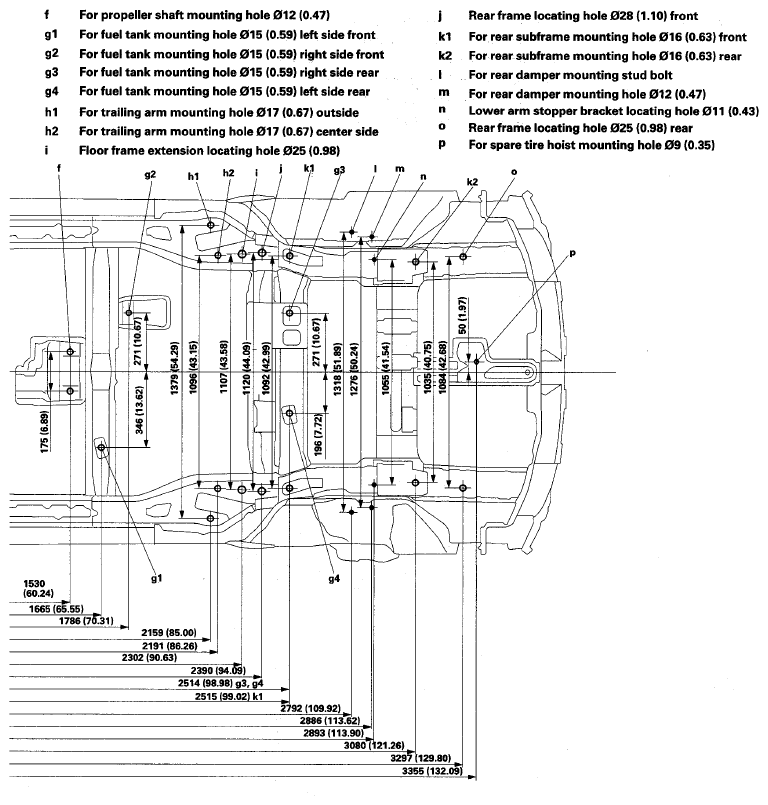

Fig 2: Frame Repair (Top View) - Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
