Pinch Sensor Replacement

  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 2P connector (A) from the pinch sensor (B).
    NOTE: The illustration shows left side pinch sensor, right side is symmetrical.

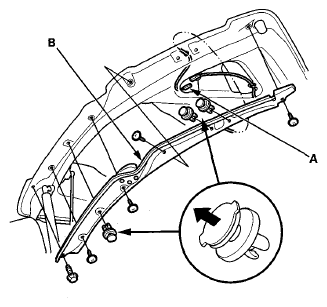

    Fig 1: Removing Tailgate Trim Panel
    G08089523Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clips, screws, and bolts from the pinch sensor.
  4. Install in the reverse order of removal.
