Pilot EX, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
System Description
>>
Overview
>>
Block Diagram
>>
System Diagram
>>
With navigation
With navigation

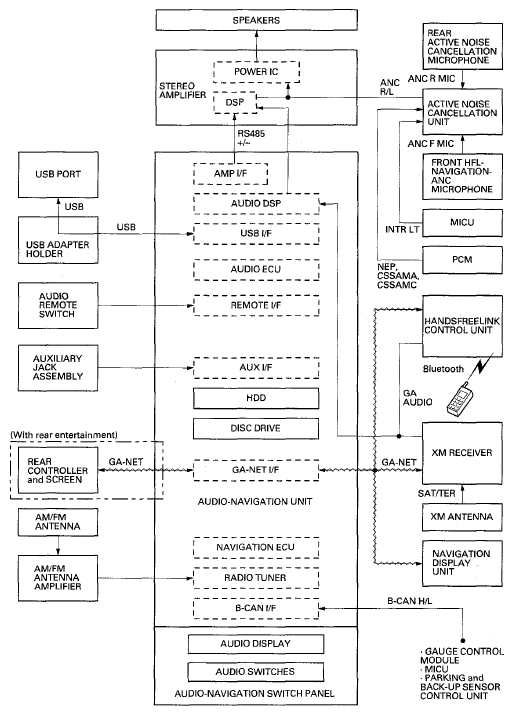

Fig 1: Audio System - Block Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
