Pilot EX, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Component Location Index
>>
Without Navigation
Without Navigation

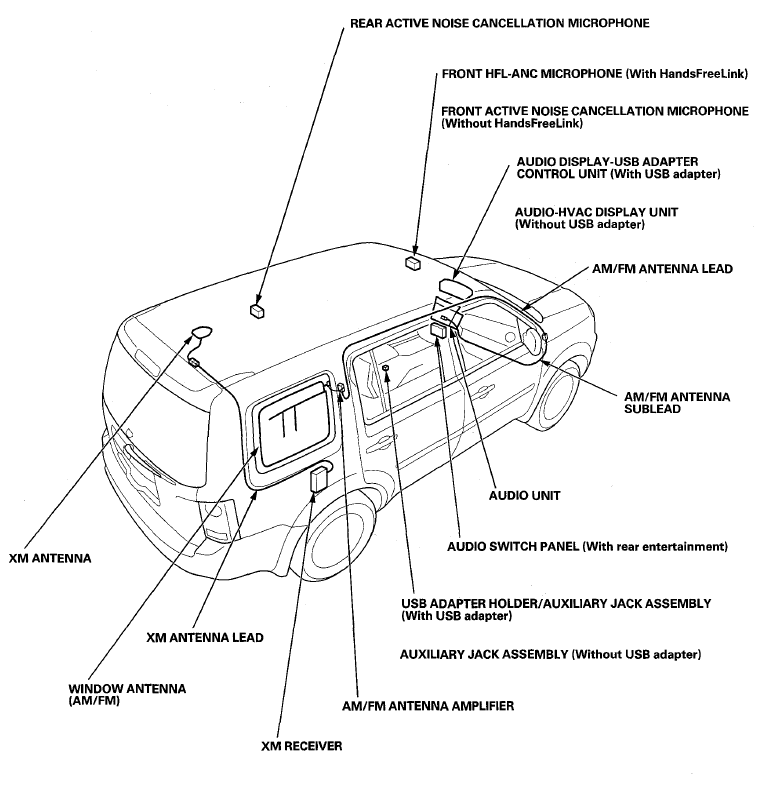

Fig 1: Identifying Audio System Components Location - Without Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

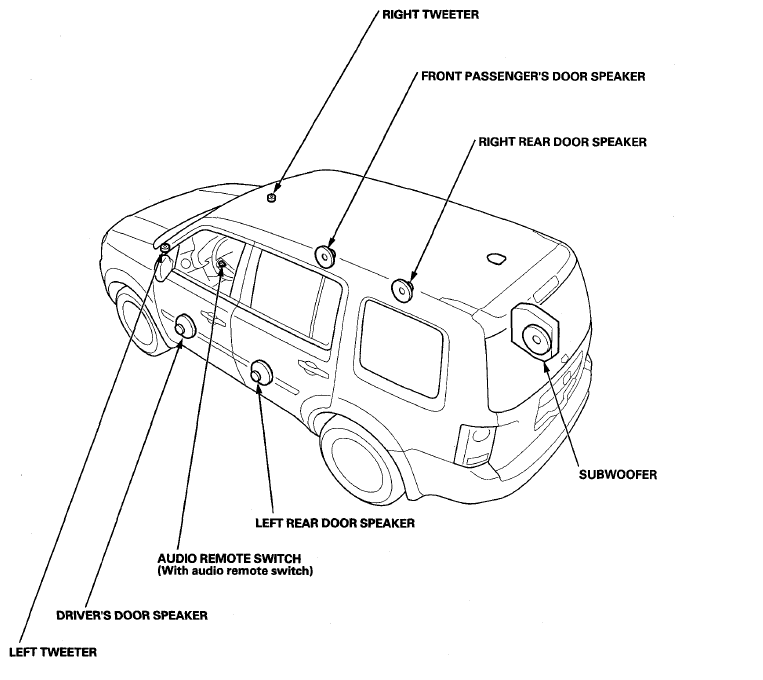

Fig 2: Identifying Audio System Components Location - Without Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
