DTC P16C4: Engine Mount Actuator Control Power Circuit Stuck OFF: Notes

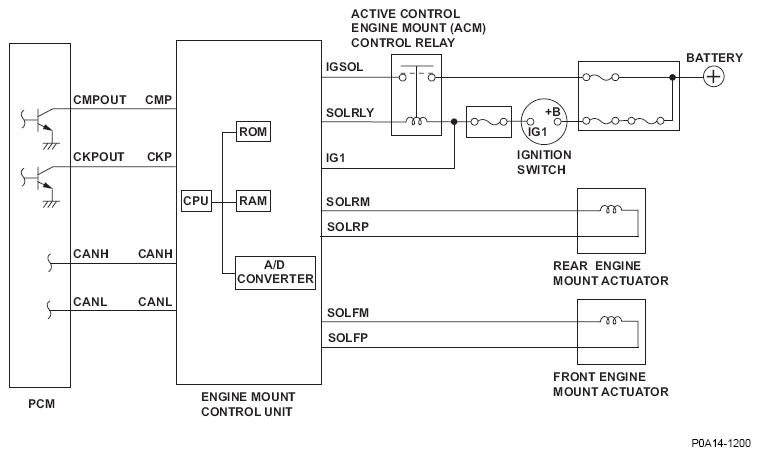

Fig 1: Engine Mount Actuator - Circuit Diagram

G08569000

Courtesy of AMERICAN HONDA MOTOR CO., INC.
