Component Location Index

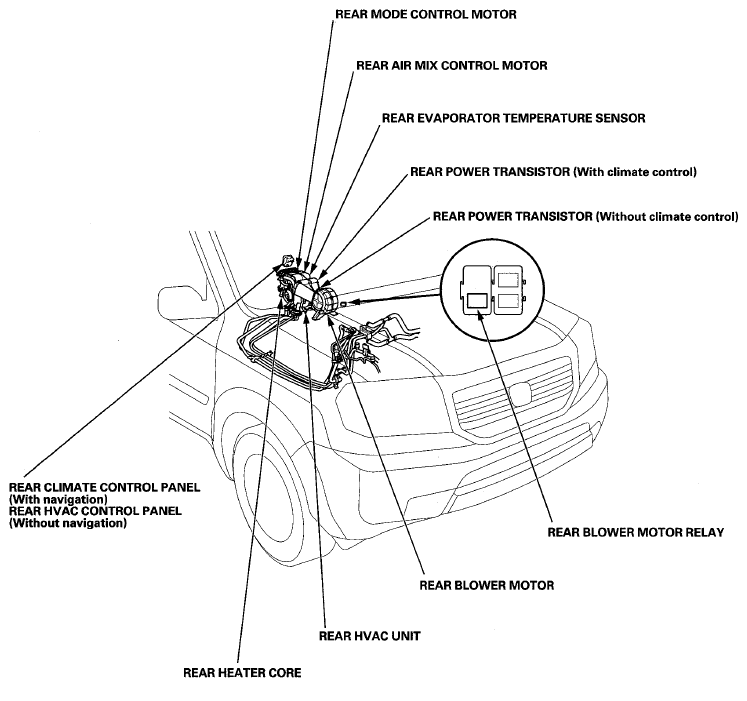

Fig 1: Identifying Rear Air Conditioning Components Location
G08090506Courtesy of AMERICAN HONDA MOTOR CO., INC.
