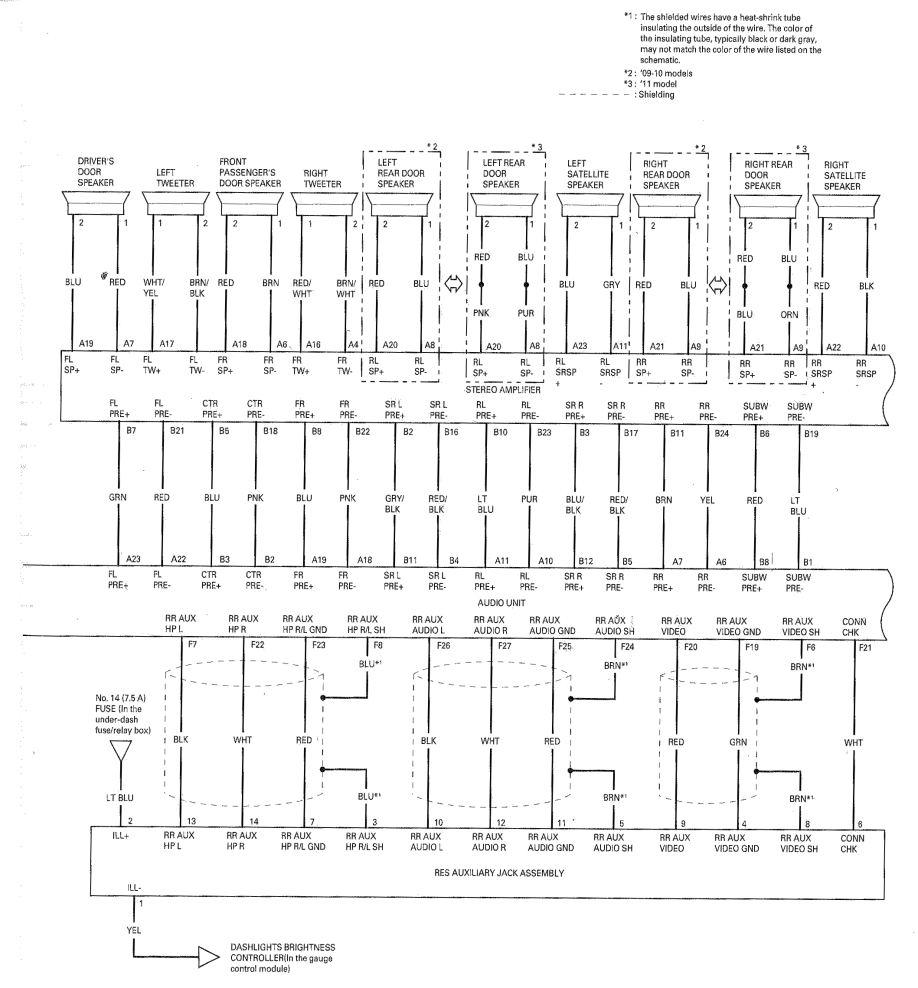

Fig 1: Identifying Rear Entertainment Circuit Diagram - With Navigation (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

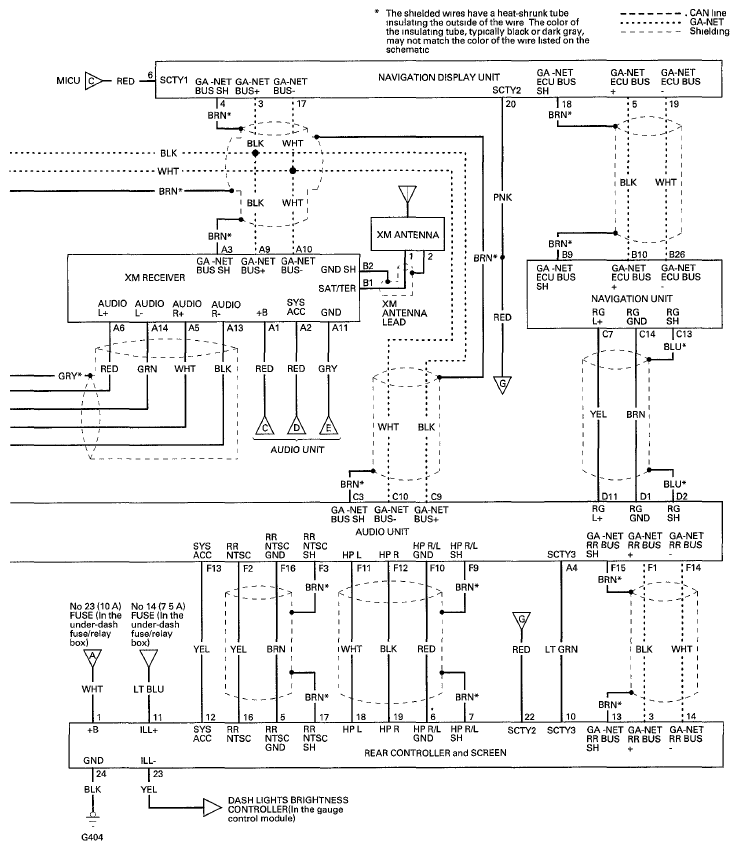

Fig 2: Identifying Rear Entertainment Circuit Diagram - With Navigation (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

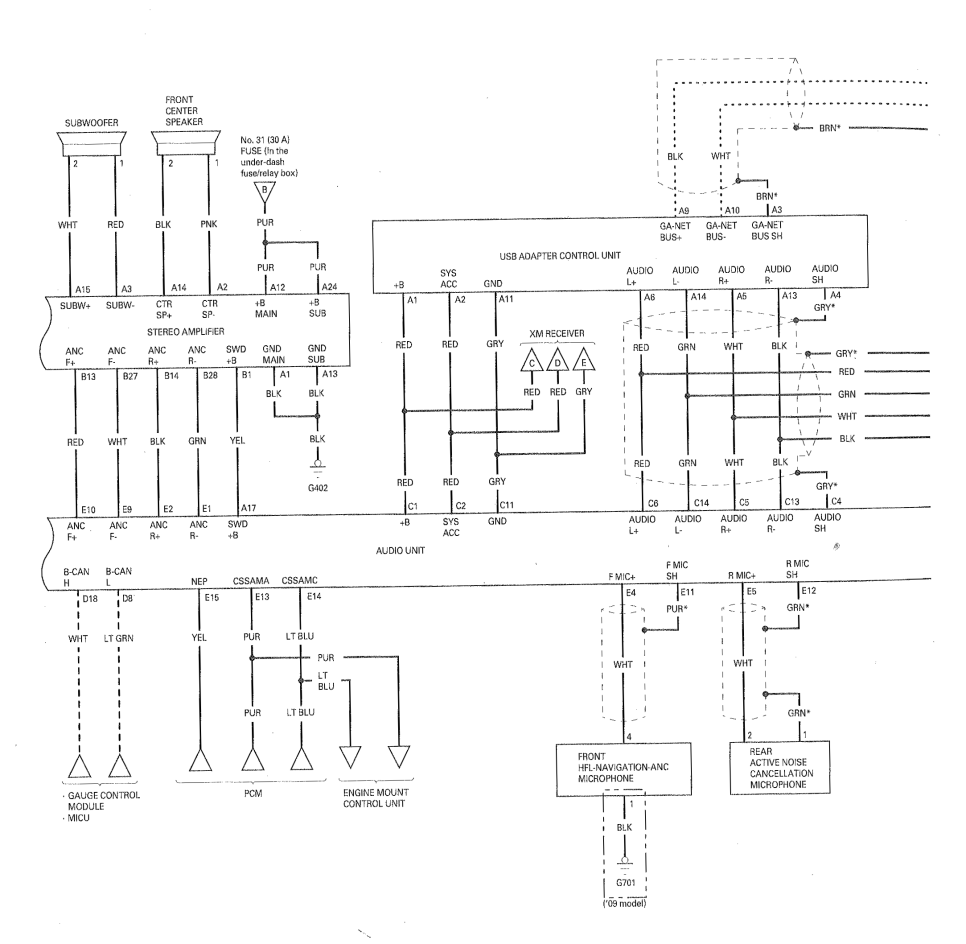

Fig 3: Identifying Rear Entertainment Circuit Diagram - With Navigation (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

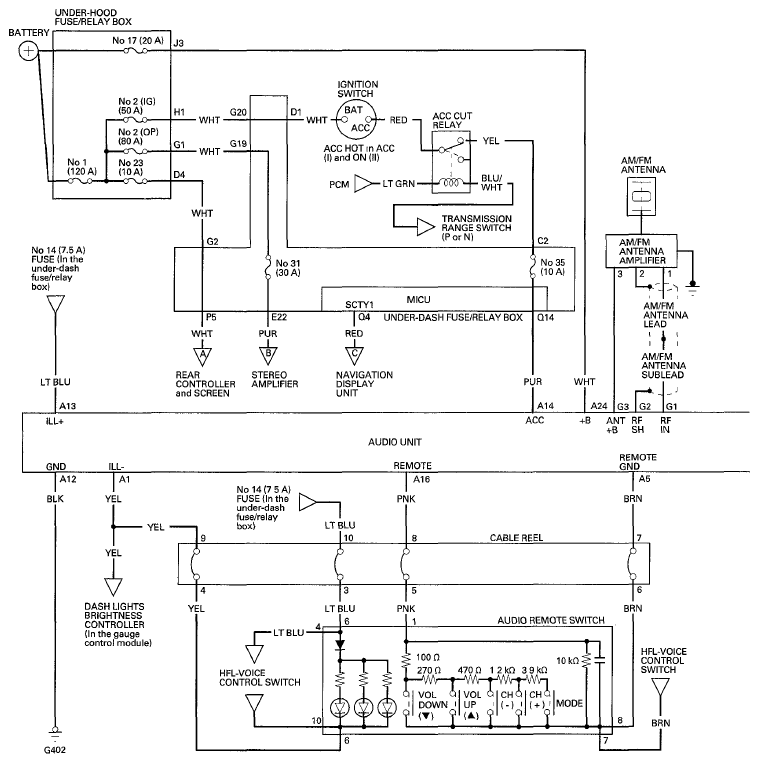

Fig 4: Identifying Rear Entertainment Circuit Diagram - With Navigation (4 Of 4)
