Audio Unit Connector G (3P)

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connects to
G1 -- AM/FM antenna amplifier (RF IN)
G2 -- Shield for terminal No. 1 (RF SH)
G3 -- AM/FM antenna amplifier (ANT +B)
Fig 1: Identifying Audio Unit Connector Terminals G (3P)
G05966809Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without navigation 6CD type

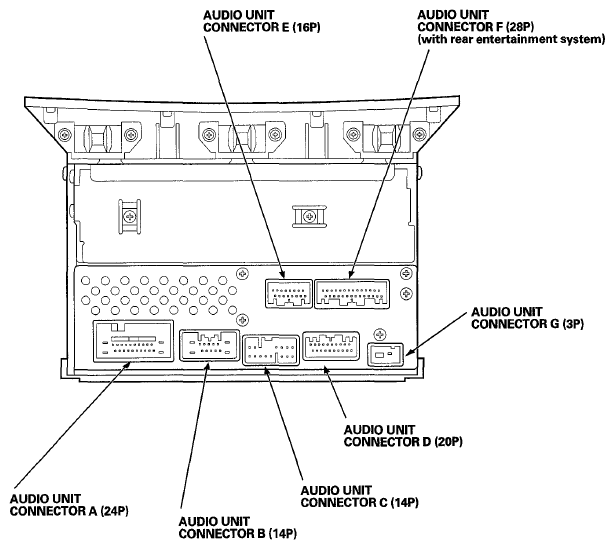

Fig 2: Identifying Audio System Connector Location (Without Navigation 6CD Type)
G05966810Courtesy of AMERICAN HONDA MOTOR CO., INC.


WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connects to
G1 - AM/FM antenna amplifier (RF IN)
G2 - Shield for terminal No. 1 (RF SH)
G3 - AM/FM antenna amplifier (ANT +B)
Fig 1: Identifying Audio Unit Connector Terminals G (3P)
G05966817Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without navigation 1CD type

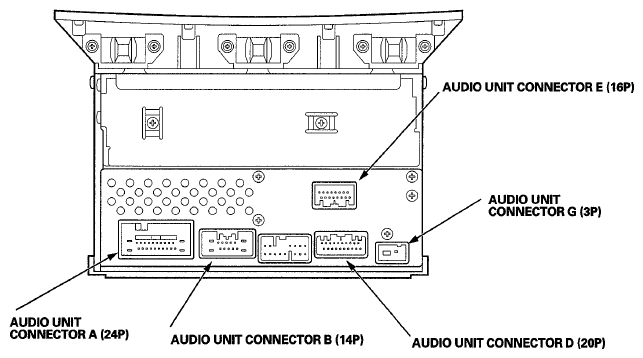

Fig 2: Identifying Audio System Connector Location (Without Navigation 1CD Type)
G05966818Courtesy of AMERICAN HONDA MOTOR CO., INC.


WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connects to
G1 - AM/FM antenna amplifier (RF IN)
G2 - Shield for terminal No. 1 (RF SH)
G3 - AM/FM antenna amplifier (ANT +B)
Fig 1: Identifying Audio Unit Connector Terminals G (3P)
G05966823Courtesy of AMERICAN HONDA MOTOR CO., INC.
