Audio Unit Connector D (20P)

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connect to
D1 BRN Navigation unit (RG GND)
D2 BLU(1) Shield for terminals No. 1 and No. 11 (RG SH)
D3 WHT Auxiliary jack assembly (AUX S GND)
D4 BRN(1) Shield for terminals No. 3, No. 13 and No. 14 (AUX SH)
D5 LT BLU Auxiliary jack assembly (AUX GND)
D6 PUR Climate control unit (CLK)
D7 BLU Climate control unit (SO)
D8 LT GRN B-CAN bus communication (B-CAN LO)
D9 RED HandsFreeLink control unit (TELM SIG-)
D10 BLU(1) Shield for terminals No. 9 and No. 19 (TELM SIG SH)
D11 YEL Navigation unit (RG L+)
D13 BLK Auxiliary jack assembly (AUX L)
D14 RED Auxiliary jack assembly (AUX R)
D15 PUR Auxiliary jack assembly (AUX DET)
D18 WHT B-CAN bus communication (B-CAN HI)
D19 GRN HandsFreeLink control unit (TELM SIG +)
D20 BLU/GRN HandsFreeLink control unit, HFL-navigation-ANC microphone (HFL MUTE)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

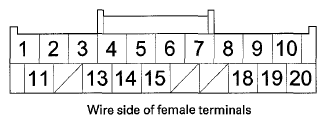

Fig 1: Identifying Audio Unit Connector Terminals D (20P)
G05966806Courtesy of AMERICAN HONDA MOTOR CO., INC.

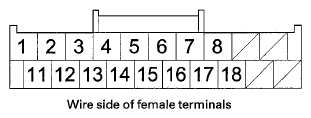

Fig 1: Identifying Audio Unit Connector Terminals D (20P)
G05966814Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connect to
D1 BLU Electrical compass unit (COMPASS RX-)
D2 BRN Electrical compass unit (COMPASS RX+)
D3 WHT Auxiliary jack assembly (AUX S GND)
D4 BRN(1) Shield for terminals No. 3, No. 13 and No. 14 (AUX SH)
D5 LT BLU Auxiliary jack assembly (AUX GND)
D6 RED Audio-HVAC display unit (DUET TX)
D7 BLK Audio-HVAC display unit (DUET RX)
D8 LT GRN B-CAN bus communication (B-CAN LO)
D11 GRY Electrical compass unit (COMPASS TX-)
D12 ORN Electrical compass unit (COMPASS TX+)
D13 BLK Auxiliary jack assembly (AUX L)
D14 RED Auxiliary jack assembly (AUX R)
D15 PUR Auxiliary jack assembly (AUX DET)
D16 BRN(1)(2) Shield for terminals No. 6, No. 7 and No. 17 (DUET SH)
D16 GRY(1)(3) Shield for terminals No. 6, No. 7 and No. 17 (DUET SH)
D17 WHT Audio-HVAC display unit (DUET CONT)
D18 WHT B-CAN bus communication (B-CAN HI)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

(2) *2: '09-10 models

(3) *3: '11 model
