Audio Unit Connector C (14P)

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connect to
C1 RED XM receiver, USB adapter unit (+B)
C2 RED XM receiver, USB adapter unit (SYS ACC)
C3 BRN(1) Shield for terminals No. 9 and No. 10 (GA-NET BUS SH)
C4 GRY(1) Shield for terminals No. 5, No. 6, No. 13 and No. 14 (AUDIO SH)
C5 WHT XM receiver, USB adapter unit (AUDIO R+)
C6 RED XM receiver, USB adapter unit (AUDIO L+)
C9 BLK XM receiver, USB adapter unit, navigation display unit (GA-NET BUS+)
C10 WHT XM receiver, USB adapter unit, navigation display unit (GA-NET BUS-)
C11 GRY XM receiver, USB adapter unit (GND)
C13 BLK XM receiver, USB adapter unit (AUDIO R-)
C14 GRN XM receiver, USB adapter unit (AUDIO L-)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
Fig 1: Identifying Audio Unit Connector Terminals C (14P)
G05966805Courtesy of AMERICAN HONDA MOTOR CO., INC.


WIRE COLOR REFERENCE TABLE

Cavity Wire Color Connect to
C1 RED XM receiver (+B)
C2 RED XM receiver (SYS ACC)
C3 BRN(1) Shield for terminals No. 9 and No. 10 (GA-NET BUS SH)
C4 GRY(1) Shield for terminals No. 5, No. 6, No. 13 and No. 14 (AUDIO SH)
C5 WHT XM receiver (AUDIO R+)
C6 RED XM receiver (AUDIO L+)
C9 BLK XM receiver (GA-NET BUS +)
C10 WHT XM receiver (GA-NET BUS-)
C11 GRY XM receiver (GND)
C13 BLK XM receiver (AUDIO R-)
C14 GRN XM receiver (AUDIO L-)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

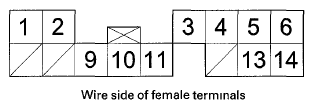

Fig 1: Identifying Audio Unit Connector Terminals C (14P)
G05966813Courtesy of AMERICAN HONDA MOTOR CO., INC.
