Special Tools Required

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment

Program; call 888-424-6857

NOTE:

Take care not to scratch the console or the armrest.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the screws and release the hooks (A), then remove the armrest inner base (B).

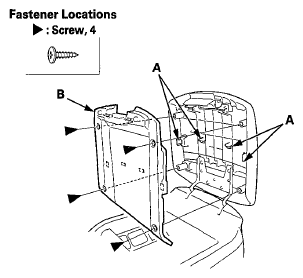

Fig 1: Identifying Armrest Inner Base With Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, then remove the armrest lock (A) from the armrest outer base (B).

Fig 2: Identifying Armrest Outer Base With Armrest
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest lock in the reverse order of removal.
