Steering Column Inspection: Inspection

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Check these items:
- Check the steering column ball bearing (A) and the steering joint (B) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
- Check the sliding capsules (C) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
- Check the tilt mechanism and telescopic mechanism for movement and damage.

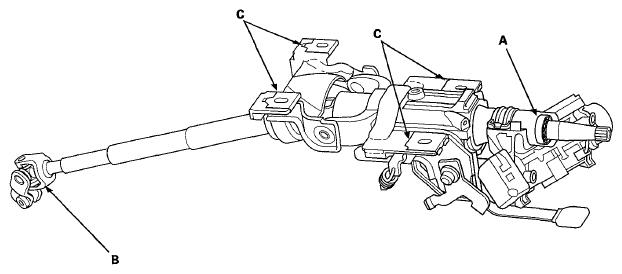

Fig 1: Identifying Steering Column Ball Bearing, Steering Joints & Sliding Capsules
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION ).
